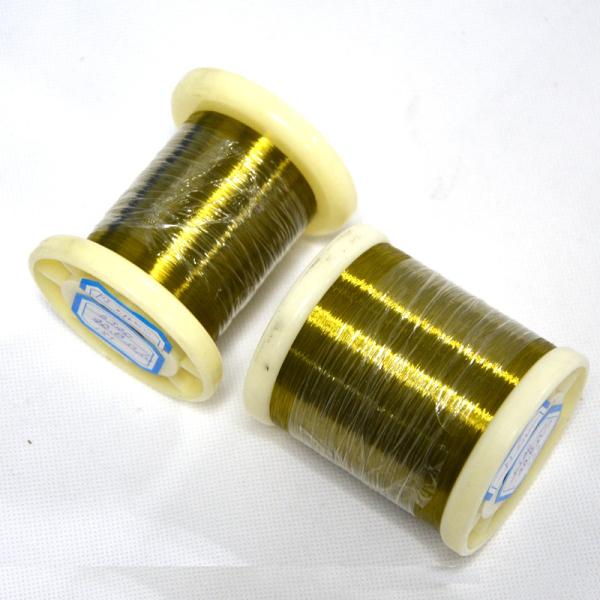

180c Class H Enamelled Copper Nickel Wire (CuNi40, CuNi44, Constantan)

Ask Lasest Price
Brand Name :	TANKII
Model Number :	CUNI 40
Certification :	ISO9001
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100 Tons per month
Delivery Time :	7-20 days

Add to Cart

Product Details
Company Profile

180c Class H Enamelled Copper Nickel Wire (CuNi40, CuNi44, Constantan)

These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare alloy wire

Copper-nickel alloy wire,	Constantan Wire,CuNi1~CuNi44
Ni-Cr Alloy wire	NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire	Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire	CuMn12Ni2,CuMn12Ni4,Manganin
Stainless steel Wire
Silver	Purity 9.99%
golden Wire
Any copper alloy and nickel alloy is available

Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	MW75C
Polyester enamelled wire	155	PEW	MW5C
Polyester-imide enamelled wire	180	EIW	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	MW35C
Polyamide-imide enamelled wire	220	AIW	MW81C

Style of supply

Alloys Name	Type	Dimension
Enameled-W	Wire	D=0.018mm~1.2mm
Enameled-R	Ribbon	W=0.4~24	T=0.01~0.2mm

Dimension of insulation

D mm	Min thickness of insulation		Max OD of Enameled
D mm	I	II	I	II
0.02	0.005	0.009	0.09	0.036
0.022	0.005	0.019	0.032	0.038
0.025	0.006	0.010	0.036	0.042
0.028	0.006	0.010	0.039	0.045
0.030	0.006	0.011	0.042	0.048
0.032	0.006	0.011	0.044	0.050
0.036	0.007	0.012	0.049	0.055
0.040	0.007	0.012	0.053	0.060
0.045	0.008	0.013	0.059	0.066
0.050	0.008	0.014	0.064	0.072
0.056	0.009	0.015	0.071	0.079
0.060	0.009	0.016	0.076	0.084
0.063	0.009	0.016	0.080	0.088
0.071	0.010	0.017	0.089	0.097
0.080	0.011	0.018	0.099	0.108
0.090	0.012	0.019	0.111	0.120
0.100	0.012	0.021	0.122	0.132
0.112	0.012	0.021	0.135	0.146
0.125	0.014	0.023	0.150	0.161
0.140	0.015	0.024	0.166	0.179
0.150	0.016	0.025	0.177	0.191
0.160	0.017	0.028	0.188	0.202
0.180	0.018	0.028	0.210	0.225
0.200	0.019	0.030	0.231	0.248
0.224	0.021	0.032	0.258	0.275
0.250	0.022	0.034	0.285	0.304
0.280	0.024	0.036	0.318	0.338
0.300	0.025	0.037	0.339	0.360
0.315	0.026	0.038	0.356	0.376
0.355	0.027	0.041	0.398	0.420
0.400	0.028	0.043	0.445	0.468
0.450	0.030	0.048	0.498	0.524
0.500	0.031	0.049	0.551	0.578
0.560	0.034	0.052	0.615	0.643
0.600	0.035	0.054	0.657	0.686
0.630	0.038	0.056	0.689	0.718
0.710	0.038	0.059	0.773	0.805
0.00	0.041	0.062	0.869	0.902
0.900	0.043	0.066	0.973	1.010
1.000	0.048	0.070	1.079	1.117
1.120	0.049	0.074	1.205	1.247
1.250	0.053	0.080	1.343	1.387
1.400	0.058	0.085	1.499	1.548
1.500	0.059	0.090	1.605	1.654

main property type		Cuni1	CuNI2	CuNI6	CuNi8	CuNI10	CuNi14	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
main chemical composition	Ni	1	2	6	8	10	14.2	19	23	30	34	44
	MN	/	/	/	/	/	0.3	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	250	300	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ± 10%	0.05± 10%	0.10± 10%	0.12± 10%	0.15± 10%	0.20± 5%	0.25± 5%	0.30± 5%	0.35± 5%	0.40± 5%	0.49± 5%
temperature coefficient of resistance		<100	<120	<60	<57	<50	<38	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>270	>290	>310	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1097	1100	1115	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	75	59	48	38	33	27	25	23
