    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : N8 / A1/AF /Alloy750/875/815
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 tons/year
    Delivery Time : 7~20 days after getting the payment
    MOQ : 5~40kg as per sizes
    • Product Details
    • Company Profile

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm


    Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.


    Main Types of resistance wire:

    1. Nichrome alloy wire

    2. FeCrAl (iron-chromium-aluminium) alloy wire

    3. Constantan wire

    4. Copper Nickel alloy wire

    5. Manganin wire


    Parameters of resistance wires:


    Nichrome alloy wire:


    Performance/

    material


    Cr10Ni90


    Cr20Ni80


    Cr30Ni70


    Cr15Ni60


    Cr20Ni35


    Cr20Ni30

    CompositionNi

    90


    RestRest55.0-61.034.0-37.030.3-34.0
    Cr1020.0-23.028.0-31.015.0-18.018.0-21.018.0-21.0
    Fe--≤1.0≤1.0RestRestRest
    Max. continuous service temp. of element(ºC)120012001250115011001100
    Melting Point140014001380139013901390
    Resistivity--1.09+-0.051.18+-0.051.12+-0.051.00+-0.051.04+-0.05
    Density (g/cm3)8.78.48.18.27.97.9
    Elongation at rupture≥20≥20≥20≥20≥20≥20
    T.S.(MPa)≥490≥600≥600≥600≥600≥600

    Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
    Properties Grade
    1Cr13Al4
    0Cr25Al5
    0Cr21Al6
    0Cr23Al5
    0Cr21Al4
    0Cr21Al6Nb
    0Cr27Al7Mo2
    Main Chemical Composition
    (%)

    Cr
    12.0-15.0
    23.0-26.0
    19.0-22.0
    22.5-24.5
    18.0-21.0
    21.0-23.0
    26.5-27.8
    Al
    4.0-6.0
    4.5-6.5
    5.0-7.0
    4.2-5.0
    3.0-4.2
    5.0-7.0
    6.0-7.0
    Re
    opportune
    opportune
    opportune
    opportune
    opportune
    opportune
    opportune
    Fe
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.






    Nb0.5
    Mo1.8-2.2

    Max Continuous Service

    Temperature(oC)

    950
    1250
    1250
    1250
    1100
    1350
    1400
    Resisivity 20℃ (Ωmm2/m)
    1.25
    ±0.08

    1.42
    ±0.06

    1.42
    ±0.07

    1.35
    ±0.07

    1.23
    ±0.07

    1.45
    ±0.07

    1.53
    ±0.07

    Density(g/cm3)
    7.4
    7.1
    7.16
    7.25
    7.35
    7.1
    7.1
    Thermal Conductivity
    52.7
    46.1
    63.2
    60.2
    46.9
    46.1
    45.2
    (KJ/m@h@℃)

    Coefficient of Thermal

    Expansion(α×10-6/℃)

    15.4
    16
    14.7
    15
    13.5
    16
    16

    Approximate Melting

    Point( ℃)

    1450
    1500
    1500
    1500
    1500
    1510
    1520
    Tensile Strength(N/mm2)
    580-680
    630-780
    630-780
    630-780
    600-700
    650-800
    680-830
    Elongation(%)
    >16
    >12
    >12
    >12
    >12
    >12
    >10
    Section Variation
    65-75
    60-75
    65-75
    65-75
    65-75
    65-75
    65-75
    Shrink Rate (%)

    Repeatedly Bend

    Frequency(F/R)

    >5
    >5
    >5
    >5
    >5
    >5
    >5
    Hardness (H.B.)
    200-260
    200-260
    200-260
    200-260
    200-260
    200-260
    200-260
    Continuous Service Time
    no
    ≥80/1300
    ≥80/1300
    ≥80/1300
    ≥80/1250
    ≥50/1350
    ≥50/1350
    Micrographic Structure
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Magnetic Property
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic

    FeCrAl (iron-chromium-aluminium) alloy wire:


    Constantan wire:

    NiMnFeSiCuOtherROHS Directive
    CdPbHgCr
    441.50%0.5-Bal-NDNDNDND

    Max Continuous Service Temp400ºC
    Resisivity at 20ºC0.49±5%ohm mm2/m
    Density8.9 g/cm3
    Thermal Conductivity-6(Max)
    Melting Point1280ºC
    Tensile Strength,N/mm2 Annealed,Soft340~535 Mpa
    Tensile Strength,N/mm3 Cold Rolled680~1070 Mpa
    Elongation(anneal)25%(Min)
    Elongation(cold rolled)≥Min)2%(Min)
    EMF vs Cu, μV/ºC (0~100ºC)-43
    Micrographic Structureaustenite
    Magnetic PropertyNon

    Copper Nickel alloy wire:

    Main grades and properties

    TypeElectrical resistivity
    (20degreeΩ
    mm²/m)
    Temperature coefficient of resistance
    (10^6/degree)
    Density
    g/mm²
    Max. temperature
    (°c)
    Melting point
    (°c)
    CuNi10.03<10008.92001085
    CuNi20.05<12008.9
    200
    1090
    CuNi60.10<6008.92201095
    CuNi80.12<5708.92501097
    CuNi100.15<5008.92501100
    CuNi140.20<3808.93001115
    CuNi190.25<2508.93001135
    CuNi230.30<1608.93001150
    CuNi300.35<1008.93501170
    CuNi340.40-08.93501180
    CuNi400.48±408.94001280
    CuNi440.49<-68.94001280

    Manganin wire:

    Alloy typeCuMnNi
    6J8rest8-10/
    6J12rest11-132-3
    6J13rest11-132-5

    Parameters:

    Item6J86J126J13
    Resistivity0.35±0.050.47±0.030.44±0.04
    TCRx10-6/°c-5~+10-10~+200~40
    EMF V S Cu(0-100°c)uv/°c≤2≤1≤2
    Density(g/cm3)8.78.48.4
    Melting point (°c)960960960
    Tensile strength(MPa)490--539490--539490--539
    Elongation(%)10-3010-3010-30
    Service temperature(°c)10-805-4510-80

    Resistance wire pictures: round wire


    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm


    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm

    Flat wire:

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm

    Thick wire green color:

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm

    Resistance wire golden color:

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm

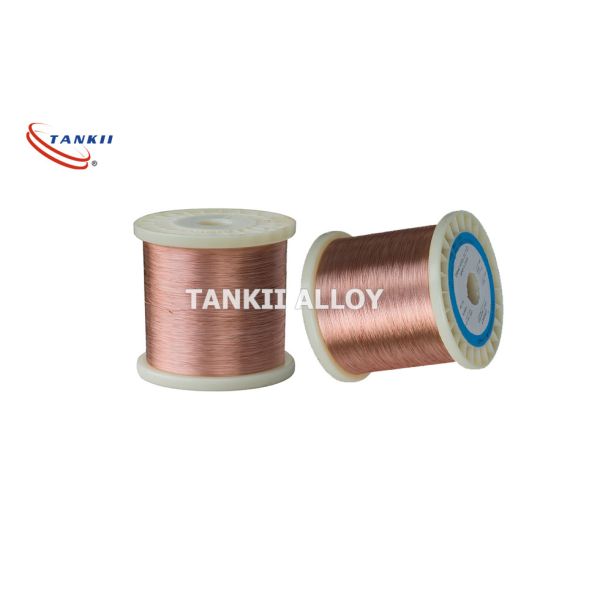

    Copper alloy wire:

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm



    Package of resistance wire :

    Nikrothal 80 / Chromel 7030 /TANKII AF Electric Resistance Wire Round /Flat Wire Dia 0.05mm To 12mm





    Please call me at +86-18017475212 or email to me for more information on FeCrAl products.
