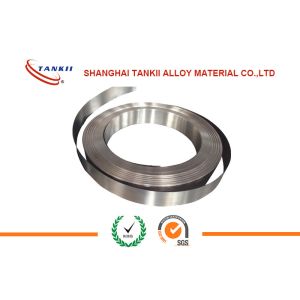

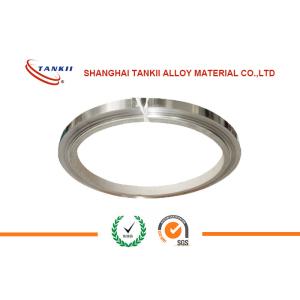

    Buy cheap 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 from wholesalers

    Buy cheap 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 from wholesalers
    • Buy cheap 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 from wholesalers
    • Buy cheap 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 from wholesalers
    • Buy cheap 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 from wholesalers
    • Buy cheap 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 from wholesalers
    • Buy cheap 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 from wholesalers

    0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : Resistohm 135
    Certification : ISO9001
    Price : negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 tons/year
    Delivery Time : 7~25 days after getting the payment
    MOQ : 40kg
    • Product Details
    • Company Profile

    0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135

    0.5mm Thickness FeCrAl Alloy Element Heating Strip Resistohm 135

    1. Description
    FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
    FECRAL Has less hot strength than Tophet alloys but much higher melting point.
    We also produce below grades:
    Alkrothal 14, Alloy 750, Alferon 902, Alchrome 750, Resistohm 125, Aluchrom, 750 Alloy, Stablohm 750
    TANKII A1, TANKII, Alloy 875, Resistohm 145, Aluchrom 0, Alchrome 875, MWS-875, Stablohm 875, KAF TANKII AF, Resistohm Y, Aluchrom Y, Alloy 837, AF KAPM KAPM, Alloy 875 PM, TANKII APM
    TANKII D, TANKII, Alloy 815, Alchrome DK, Alferon 901, Resistohm 135, Aluchrom S, Stablohm 812


    2.Specification
    1).Locomotive resistance strip:
    Thickness:0.6mm-1.5mm
    Width:60mm-90mm

    2).Electric ceramic cooktop resistance strip:
    Thickness:0.04mm-1.0mm
    Width:5mm-12mm
    Thickness&Width:(0.04mm-1.0mm)×12mm(above)


    3).Low resistance ribbon:
    Thickness&Width:(0.2mm-1.5mm)*5mm

    4).Industrial furnace ribbon:
    Thickness:1.5mm-3.0mm
    Width:10mm-30mm

    5).Wire: Diameter:0.05mm-10.0mm


    3.Features
    Heating Strip has Stable performance; Anti-oxidation;
    Corrosion resistance;High temperature stability;
    Excellent coil-forming ability;
    Uniform and beautiful surface condition without spots.

    4.Packing detail
    Spool, coil, wooden case (as per client's requirement)

    5. Details

    Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
    Grade
    1Cr13Al4
    0Cr25Al5
    0Cr21Al6
    0Cr23Al5
    0Cr21Al4
    0Cr21Al6Nb
    0Cr27Al7Mo2
    Main Chemical Composition
    (%)
    Cr
    12.0-15.0
    23.0-26.0
    19.0-22.0
    22.5-24.5
    18.0-21.0
    21.0-23.0
    26.5-27.8
    Al
    4.0-6.0
    4.5-6.5
    5.0-7.0
    4.2-5.0
    3.0-4.2
    5.0-7.0
    6.0-7.0
    Re
    opportune
    opportune
    opportune
    opportune
    opportune
    opportune
    opportune
    Fe
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.






    Nb0.5
    Mo1.8-2.2
    Max Continuous Service Temperature(oC)
    950
    1250
    1250
    1250
    1100
    1350
    1400
    Resistivity 20℃ (Ωmm2/m)
    1.25
    ±0.08
    1.42
    ±0.06
    1.42
    ±0.07
    1.35
    ±0.07
    1.23
    ±0.07
    1.45
    ±0.07
    1.53
    ±0.07
    Density(g/cm3)
    7.4
    7.1
    7.16
    7.25
    7.35
    7.1
    7.1
    Thermal Conductivity
    52.7
    46.1
    63.2
    60.2
    46.9
    46.1
    45.2
    (KJ/m@h@oC)
    Coefficient of Thermal Expansion(α×10-6/oC)
    15.4
    16
    14.7
    15
    13.5
    16
    16
    Approximate Melting Point( oC)
    1450
    1500
    1500
    1500
    1500
    1510
    1520
    Tensile Strength(N/mm2)
    580-680
    630-780
    630-780
    630-780
    600-700
    650-800
    680-830
    Elongation(%)
    >16
    >12
    >12
    >12
    >12
    >12
    >10
    Section Variation
    65-75
    60-75
    65-75
    65-75
    65-75
    65-75
    65-75
    Shrink Rate (%)
    Repeatedly Bend Frequency(F/R)
    >5
    >5
    >5
    >5
    >5
    >5
    >5
    Hardness (H.B.)
    200-260
    200-260
    200-260
    200-260
    200-260
    200-260
    200-260
    Continuous Service Time
    no
    ≥80/1300
    ≥80/1300
    ≥80/1300
    ≥80/1250
    ≥50/1350
    ≥50/1350
    Micrographic Structure
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Magnetic Property
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic


    6. Pictures

    Application:

    Quality 0.5mm Thickness FeCrAl Alloy Strip Heating Element Resistohm 135 for sale
