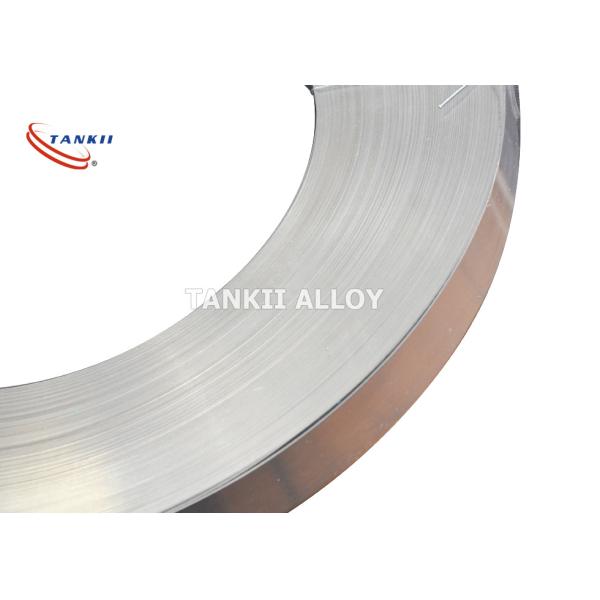

    Buy cheap CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape from wholesalers

    Buy cheap CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape from wholesalers
    • Buy cheap CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape from wholesalers
    • Buy cheap CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape from wholesalers

    CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : Constantan
    Certification : ISO
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 20,000kg/Week
    • Product Details
    • Company Profile

    CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape

    CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape

    Constantan
    Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat
    resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the manganins.
    Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

    Chemical Content, %

    NiMnFeSiCuOtherROHS Directive
    CdPbHgCr
    441.50%0.5-Bal-NDNDNDND


    Mechanical Properties

    Max Continuous Service Temp400ºC
    Resisivity at 20ºC0.49±5%ohm mm2/m
    Density8.9 g/cm3
    Thermal Conductivity-6(Max)
    Melting Point1280ºC
    Tensile Strength,N/mm2 Annealed,Soft340~535 Mpa
    Tensile Strength,N/mm3 Cold Rolled680~1070 Mpa
    Elongation(anneal)25%(Min)
    Elongation(cold rolled)≥Min)2%(Min)
    EMF vs Cu, μV/ºC (0~100ºC)-43
    Micrographic Structureaustenite
    Magnetic PropertyNon


    Application:
    CuNi44 is a copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity. Careful control of melting and conversion practices results in a very low level of pinholes at
    ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.




    CuNi45/CuNi44 Constantan Resistance Copper Nickel Alloy Strip


    CuNi44 Constantan Resistance Copper Nickel Alloy Strip Resistance Tape
