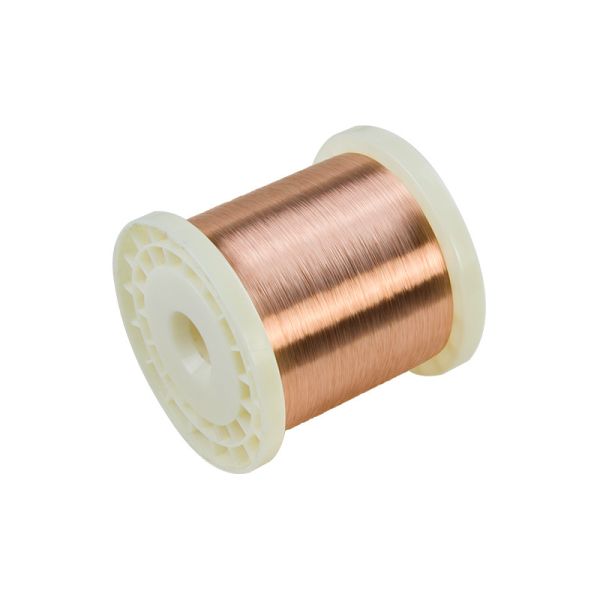

Low Resisitance Nickel Copper Alloy Wire (CuNi15) Copper Nickel
Wire Bright Surface
Copper nickel alloy,which has low electric resistance,good
heat-resistant and corrosion-resistant, easy to be processed and
lead welded.It is used to make the key components in the thermal
overload relay,low resistance thermal circuit breaker, and the
electrical appliances.It is also an important material for
electrical heating cable.It's similar as s type cupronickel.
Principally destined for the manufacturing of low temperatures
electric resistances so as heating cables, shunts, resistances for
automobile, they have a maximum operating temperature of 752F.
They do not therefore intervene in the field of resistances for
industrial furnaces. Those are alloys of chemical composition
copper + nickel with addition of manganese with a low resistivity
(from 231.5 to 23.6 Ohm. Mm2/ft).
The most known, CuNi 44 (also called Constantan) presents the
advantage of a very low temperature coefficient.
China Grade from Tankii alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14,
CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
Packing: Spool, carton, pallet: Coil, waterproof paper
Tankii Alloy is the best alloy wire and alloy strip producer in
China
| Form | Specification | Supply Form | Others |
| Sheet | Thickness:0.40-4.75mm,General Width:1000,1219,1500mm | Whole Coil or piece of it | Cold Annealed,Surface 2B,2E |
| Plate | Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under
10mm plate can be coiled) | Whole Coil or piece of it | Single hot rolling,Solid solution annealed state,Surface 1D |
| Belt | Thickness:0.10-3.0mm,Width:50-500mm | Whole Coil or Specified size | Cold Annealed,Surface 2B,2E |
| Bar & Rod | Rolled barΦ5-45mm,Length≤1500mm | Polished Bar(circle,Square) | Solution annealing,descaling |
| Forged barΦ26-245mm,Length≤4000mm |
| Weld tube | Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000
mm | Base on your requirement | Use for PHE |
| Seamless Tube | Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm | Base on your requirement | Use for PHE |
| Wire | Outer diameterΦ0.1-13mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Forged piece | roundness and square alloy | Base on your requirement | Steel, Alloy |
| Flangs | All kinds of Flangs | Base on your requirement | Steel, Alloy |
| Welding Material | Coil wire Φ0.90mm/1.2mm/1.6mm | Base on your requirement | Certificate of Origin:America, Sweden, Britain, Germany, Austria,
Italy, France. |
| Straight WireΦ1.2mm/1.6mm/2.4mm/3.2mm/4.0mm |
| Welding rodΦ2.4mm/3.2mm/4.0mm |
| Tube | Elbow, three links, four links, different diameter size | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Explosive bonded laminate | Raw Sheet Thickness≥2mm | Base on your requirement | Ni & Ni alloy, Ti & Ti all |
294:Common Name:
Alloy294, Cuprothal294, Nico, MWS-294, Cupron, Copel, Alloy45,
Cu-Ni102, Cu-Ni44, Cuprothal, Cupron, Copel, Neutrology, Advance,
Konstantan
A30:Common Name:
Alloy 30, MWS-30, Cuprothal 5, Cu-Ni 23, Alloy 260, Cuprothal 30
HAI-30, Cu-Ni2, Alloy 230, Nickel Alloy 30
A90: Common Name:
Alloy 95, 90 Alloy, MWS-90, Cu-Ni 10, Cuprothal 15, Cu-Ni 10, Alloy
320 Alloy 90, Alloy 290, #95 Alloy, Cuprothal 90,HAI-90,Alloy
260,Nickel Alloy 90
A180: Common Name:
Alloy 180, 180 Alloy, MWS-180, Cuprothal 30, Midohm, Cu-Ni 23,
Nickel Alloy 180
