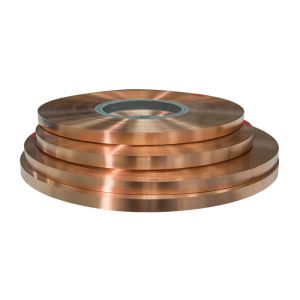

    C14415 TSn0.12 CuSn0.15 C14420 CW117C Copper Tin Alloy Strip Foil For Heat Exchanger Fin

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : C14415
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Tons per month
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    C14415 TSn0.12 CuSn0.15 C14420 CW117C Copper Tin Alloy Strip Foil For Heat Exchanger Fin

    C14415


    CuSn0.15 is a copper-tin alloy that contains approximately 0.15% tin. Here’s a concise overview of its properties, composition, and applications:

    Properties

    • Good Corrosion Resistance: Offers resistance to corrosion, particularly in marine environments.
    • High Strength: The addition of tin enhances the mechanical strength of the alloy compared to pure copper.
    • Excellent Wear Resistance: Suitable for applications involving friction and wear.
    • Good Castability: Can be easily cast, making it suitable for various manufacturing processes.

    Applications

    • Bearing Materials: Commonly used in bearings and bushings due to its wear resistance and durability.
    • Marine Applications: Ideal for components exposed to seawater and other corrosive environments.
    • Electrical Applications: Used in electrical parts where moderate conductivity and improved mechanical properties are required.

    Summary

    CuSn0.15 is a copper-tin alloy known for its good corrosion resistance, strength, and wear resistance, making it suitable for a variety of industrial and marine applications.

    CHEMICAL COMPOSITION

    Sn%Cu%
    Nominal CompositionBal.
    Min0.10
    Max0.15

    PHYSICAL PROPERTIES

    Density g/cm38.93
    Conductivity at 20°C %IACS83
    Elastic Modulus GPa120
    Poisson's ratio0.33
    Thermal expansion coefficient 10-6/ K17.3

    MECHANICAL PROPERTIES

    StateYield strengthTensile strengthElongationHardness
    MpaMPaA50%HV
    R300≥250300-370≥485-110
    R360≥300360-430≥3110-130
    R420≥350420-4902120-150
    R460≥410≥460-≥130

    Bending performance

    Bending thickness: ≤0.5 mm, bending width: 10 mm

    State90° R/T180° R/T
    GWBWGWBW
    R300000.50.5
    R3600011
    R4201122.5
    R4601.522.54

    Alloy

    System

    designation

    UNS


    EN


    JIS

    GB

    (China)

    CuTK11000C11000Cu-ETPC1100T2

    CuCr/Zr

    TK15100C15100CuZr0.1C1510TZr0.1
    TK18160C18160CuCr0.5Zr
    TK18150C18150CuCr1ZrTCr1-0.15
    CuCrSiTiTK18070C18070CuCrSiTi

    TCr0.3-0.2-

    0.05

    CuNiSnCrTiTK18090
    CuNiPTK19000C19000CuNi1P
    CuTiTK19920C19920

    CuFe

    TK19210C19210CuFe0.1PC1921TFe0.1
    TK19400C19400CuFe2PC1940TFe2.5

    CuNiSi

    TK19005C19005
    TK19010C19010CuNiSi
    TK70260C70260CuNi2SiC7026BSi2-0.45
    TK70250C70250CuNi3SiMgC7025BSi3.2-0.7
    TK70250HSC70250CuNi4SiMgC7025
    CuNiCoSiTK70318C70318CuNi3CoSi

    Special

    Brass

    TK42300C42300CuZn10Sn1NiSi
    TK42500C42500CuSn3Zn9HSn88-2

    CuSn /

    Bronze


    TK14415C14415CuSn0.15TSn0.12
    TK51000C51000CuSn5C5102QSn5-0.2
    TK51100*C51100CuSn4C5111QSn4-0.3
    TK51900*C51900CuSn6C5191QSn6-0.2
    TK52100*C52100CuSn8C5210QSn8-0.3
