0.1mm * 8mm Pure Nickel 200 Strip , Nickel 201 for Cadmium Battery

Ask Lasest Price
Brand Name :	TANKII
Model Number :	N200 N201
Certification :	ISO,ROHS
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	100,000/Month

Add to Cart

Product Details
Company Profile

0.1mm * 8mm Pure Nickel 200 Strip , Nickel 201 for Cadmium Battery

0.1mm * 8mm Pure Nickel 200 Strip , Nickel 201 for Cadmium Battery

Product Description

Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F. It has outstanding magnetic properties and thermal and electrical conductivity.

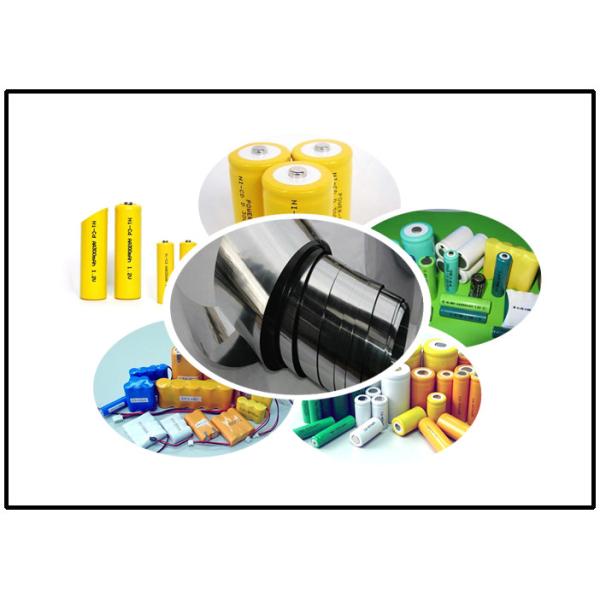

Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.

Chemical Composition of Pure Nickel Strip:

Nickel	99.6%
Copper	0.25%
Iron	0.40%
Manganese	0.35%
Carbon	0.15%
Silicon	0.35%
Sulfur	0.01%

Nickel Strip Chemical requirements

Grade	Ni+Co	Cu	Si	Mn	C	Mg	S	P	Fe
N4	99.9	0.015	0.03	0.002	0.01	0.01	0.001	0.001	0.04
N6	99.6	0.10	0.10	0.05	0.10	0.10	0.005	0.002	0.10
Ni201	99.0	≤0.25	≤0.35	≤0.35	≤0.02	/	≤0.01	/	≤0.40
Ni200	99.0	0.20	0.30	0.30	0.15	/	0.01	/	0.40

Nickel Strip Product Precision

Thickness	Thickness allowance	Burr height	Width scope and tolerance
			2≤w<10	10≤w<50	50≤w<100	100≤w<150	150≤w<200	200≤w
0.02≤t<0.05	±0.003	≤0.005	± 0.05	±0.10	±0.15	±0.20	±0.30	±0.50
0.05≤t<0.1	±0.005	≤0.01
0.1≤t<0.2	±0.008	≤0.015
0.2≤t<0.3	±0.012	≤0.02
0.3≤t<0.4	±0.015	≤0.03	± 0.10	±0.15	±0.25	±0.50	±0.80	±1.00
0.4≤t<0.6	±0.025	≤0.05
0.6≤t<0.8	±0.030	≤0.06	± 0.30	±0.40	±0.50	±0.50	±0.80	±1.00
0.8≤t<1.0	±0.040
1.0≤t<1.2	±0.050	≤0.08	± 0.50	±0.50	±0.80	±1.00	±1.00	±1.50
1.2≤t<1.4	±0.060
1.4≤t<1.7	±0.070	≤0.10
1.7≤t<2.0	±0.080

Physical properties of Pure Nickel Strip:

Density, g/cm3	8.89
Melting Range, °C	1435-1446
Specific Heat, J/kg•°C	456
Curie Temperature, °C	360

Properties of Pure Nickel Strip:

Higher electrical conductance
Raised Curie Temperature
Superior Magnetostrictive Properties
Excellent thermal conductivity

0.1mm * 8mm Pure Nickel 200 Strip , Nickel 201 for Cadmium Battery

Applications of Nickel 200 Strip:

Manufacturing artificial synthetic fibers.
Chemical Treatment and Preservation.
Aerospace Industry.
Cathode tap
Cell connector
