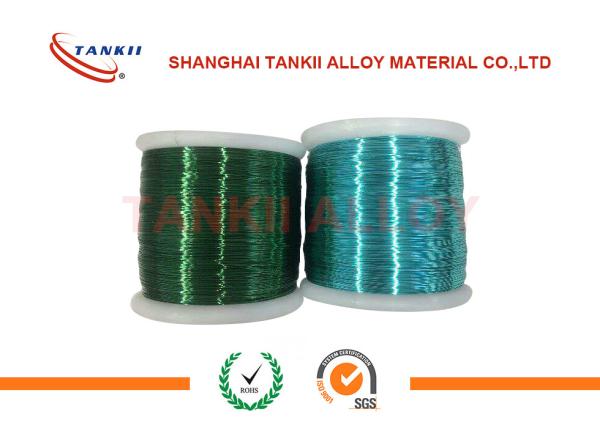

Colored Enamelled Copper Wire , Super Enamel Coated Copper Wire For Precision Resistor

Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Constantan Definition

Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature

curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple

with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element

of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Constantan material:

Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40 (6J40), CuNi44.

Constantan wire Characteristics

Constantan has a number of special characteristics due to which it is known as the most versatile alloy that is available. Some of its important characteristics are:

• High specific heat resistance
• Negligible temperature Coefficient
• Easily ductile
• Resistant to atmospheric corrosion
• Can be easily soldered and molded

Constantan wire Resistance

The resistance of constantan wire is 15.94 ohm-cmil/ft. Since the resistance of constantan does not change with temperature , it is used f or the purpose of making thermocouples and other such appliances where the resistance should remain constant for a particular range of temperature. It is an electric resistance wire.

Type of Insulation

Type Of Bare Alloy Wire

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

Size:

Round wire:0.018mm~3.0mm

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

Moq:5kg each size

Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

We’ve already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.

We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over forty years in this field. During forty years, hundreds of management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.

Based on the principle of “first quality, sincere service”, our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.

We are willing to establish strong and long-time partnership with our customers

• Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers
• Quality with end to end production control
• Technical support and Customer Service
