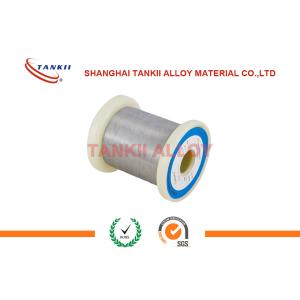

    Silver Grey Electric Resistance Wire 0cr25al5 With Diameter 0.6mm 0.7mm 0.8mm

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : 0Cr25Al5
    Certification : ISO9001:2008
    Price : To negotiate
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 7-12 days
    Supply Ability : 3000+TON+YEAR
    • Product Details
    • Company Profile

    Silver Grey Electric Resistance Wire 0cr25al5 With Diameter 0.6mm 0.7mm 0.8mm

    Silver Grey High Temperature Wire 0cr25al5 With Diameter 0.6mm 0.7mm 0.8mm


    1. Description

    FeCrAl Alloy, is now the most widely used in electric heating resistance alloy. With the characteristics of high resistance, low coefficient of electric resistance, High operating temperature, good corrosion resistance under high temperature.
    It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high Speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

    2. Specification
    1). Locomotive resistance strip:
    Thickness: 0.6mm-1.5mm
    Width: 60mm-90mm

    2). Electric ceramic cooktop resistance strip:
    Thickness: 0.04mm-1.0mm
    Width: 5mm-12mm
    Thickness&Width: (0.04mm-1.0mm)× 12mm(above)

    3). Low resistance ribbon:
    Thickness&Width: (0.2mm-1.5mm)*5mm

    4). Industrial furnace ribbon:
    Thickness: 1.5mm-3.0mm
    Width: 10mm-30mm

    3. Features
    Stable performance; Anti-oxidation; Corrosion resistance; Low expansion coefficient; High temperature stability; Excellent coil-forming ability; High surface load; Uniform and beautiful surface condition without spots

    4. Packing detail
    Spool, coil, carton, wooden case with plastic film or other wrapping paper according to per client´s requirements.

    5. Products and services
    1). Pass: ISO9001 certification, and SO14001certification;
    2). Fine after-sale services;
    3). Small order accepted;
    4). Stable properties in high temperature;
    5). Fast delivery.


    CPSMnSiCrNiAlFeOther
    Max
    0.120.0250.0250.70Max 1.013.0~15.0Max 0.604.5~6.0Bal.-


    Mechanical Properties

    Max Continuous Service Temp980ºC
    Resisivity at 20ºC1.28 ohm mm2/m
    Density7.4 g/cm3
    Thermal Conductivity52.7 KJ/m@h@ºC
    Coefficient of Thermal Expansion15.4×10-6/ºC
    Melting Point1450ºC
    Tensile Strength637~784 Mpa
    ElongationMin 12%
    Section Variation Shrink Rate65~75%
    Repeatedly Bend FrequencyMin 5 times
    Continuous Service Time-
    Hardness200-260HB
    Micrographic StructureFerrite
    Magnetic PropertyMagnetic


    Temperature Factor of Electrical Resistivity

    20ºC100ºC200ºC300ºC400ºC500ºC600ºC700ºC800ºC900ºC1000ºC
    11.0051.0141.0281.0441.0641.0901.1201.1321.1421.150

    If you are interested, pls do not hesitate to contact us.
