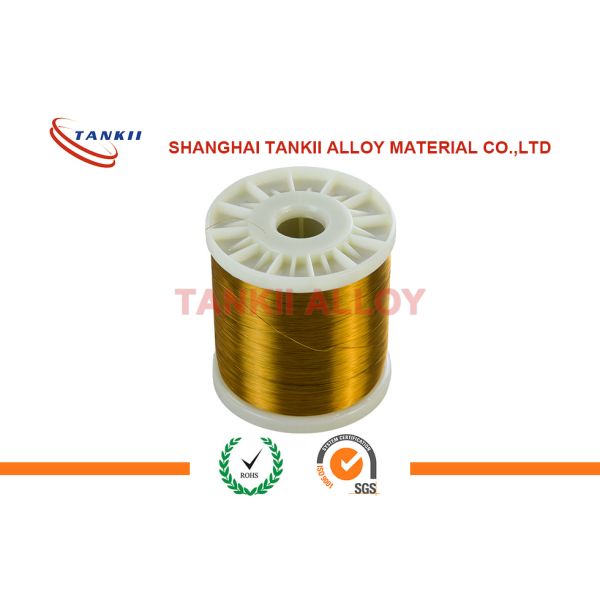

    Copper / Constantan Type T Thermocouple Wire 0.1mm With Kapton Vanish Enamelled

    Ask Lasest Price
    Brand Name : Tankii alloy
    Model Number : T type
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 1000Ton per year
    • Product Details
    • Company Profile

    Copper / Constantan Type T Thermocouple Wire 0.1mm With Kapton Vanish Enamelled

    0.1mm Copper And Constantan Type T Thermocouple Wire With Kapton Vanish Enamelled
    The thermocouple cable can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
    Our plant mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 ‘Alloy wires of extension and compensating cables for thermocouples’ (Chinese National Standard), and also IEC584-3 ‘Thermocouple part 3-compensating wire’ (International standard).
    Mineral insulated cable ( MI cable ) , enamelled wire, ribbon wire, rods can be Customized according to your request.
    Application Range:
    Heating – Gas burners for ovens
    • Cooling – Freezers
    • Engine protection – Temperatures and surface temperatures
    • High temperature control – Iron casting
    Different color codes can be supplied as per the request of the customers.
    Detailed Description on thermocouple cable
    Thermocouple CodeComp. TypeComp. Wire NamePositiveNegative
    NameCodeNameCode
    SSCcopper-constantan 0.6copperSPCconstantan 0.6SNC
    RRCcopper-constantan 0.6copperRPCconstantan 0.6RNC
    KKCAIron-constantan22IronKPCAconstantan22KNCA
    KKCBcopper-constantan 40copperKPCBconstantan 40KNCB
    KKXChromel10-NiSi3Chromel10KPXNiSi3KNX
    NNCIron-constantan 18IronNPCconstantan 18NNC
    NNXNiCr14Si-NiSi4MgNiCr14SiNPXNiSi4MgNNX
    EEXNiCr10-Constantan45NiCr10EPXConstantan45ENX
    JJXIron-constantan 45IronJPXconstantan 45JNX
    TTXcopper-constantan 45copperTPXconstantan 45TNX

    The color of Insulation and Sheath

    TypeInsulation ColorSheath Color
    PositiveNegativeGH
    /S/S
    SC/RCREDGREENBLACKGRAYBLACKYELLOW
    KCAREDBLUEBLACKGRAYBLACKYELLOW
    KCBREDBLUEBLACKGRAYBLACKYELLOW
    KXREDBLACKBLACKGRAYBLACKYELLOW
    NCREDGRAYBLACKGRAYBLACKYELLOW
    NXREDGRAYBLACKGRAYBLACKYELLOW
    EXREDBROWNBLACKGRAYBLACKYELLOW
    JXREDPURPLEBLACKGRAYBLACKYELLOW
    TXREDWHITEBLACKGRAYBLACKYELLOW
    Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign

    Insulation material :

    Material TypeContinuous Operating Temp. / ℃Abrasion ResistanceChemical ResistanceMoisture ResistanceSolvent ResistanceFlame Resistance
    PE80GoodExcellentExcellentExcellentPoor
    PVC105Very GoodVery GoodGoodFairExcellent
    TPE125ExcellentPoorGoodGoodExcellent
    SILICONE200GoodGoodExcellentExcellentExcellent
    FEP200ExcellentExcellentExcellentExcellentExcellent
    PFA260ExcellentExcellentExcellentExcellentExcellent
    PTFE260GoodExcellentExcellentExcellentExcellent
    B-GLASS FIBER260GoodGoodFairGoodGood
    G-GLASS FIBER510PoorGoodGoodExcellentExcellent
    Q-GLASS FIBER704FairGoodGoodExcellentExcellent
    VITREOUS SILICA FIBER1100GoodGoodExcellentExcellentExcellent
    MINERAL INSULATION*1100ExcellentExcellentGoodExcellentExcellent
    Delivery and Package:
    1. Standard Export package for thermocouple wire
    2. Delivery by sea or air, in about 5-7 days after getting the payment
    Enamelled material for thermocouple wire
    1. Polyester paint: 155℃, 220℃
    2. Kapton vanish: 300℃
    The enamelled thickness can be one layer, or two layers as per customer's request.
    If you have any inquiry on enamelled thermocouple wire, please contact me for more details.
