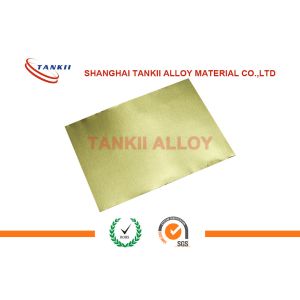

    Cu Zn Alloy Flexible Copper Strip Thickness 0.01 - 2.5mm With High Strength

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : C2720
    Certification : SGS ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 Tons per month
    Delivery Time : 7-12days
    • Product Details
    • Company Profile

    Cu Zn Alloy Flexible Copper Strip Thickness 0.01 - 2.5mm With High Strength

    flexible copper strip Cu Zn Alloy JIS Brass Strips C2680 C2801


    Our brass coil with extremely good plasticity (is best brass) and high strength, good cutting performance, easy welding, corrosion of brass coil is very stable. The mechanical properties and wear resistance are very good, can be used in the manufacture of precision instruments, ship parts, guns and shells and other brass knock. It sounds nice, so gongs, cymbals, bells, number and other musical instruments are made of brass. The hot processing temperature 750 to 830 DEG C; annealing temperature 520 to 650 DEG C; to eliminate internal stress and low temperature annealing temperature 260 ~ 270 degrees. C26000 C2600 brass plastic excellent, high strength, good machinability. Welding, good corrosion resistance, heat exchanger, paper tube, mechanical, electronic parts. Brass has strong wear resistance. Also called special brass special brass, its high strength, high hardness, resistance to chemical corrosion resistance. And machining of mechanical properties is also prominent. By brass drawn into free Copper pipe joints, soft, strong resistance. Brass seamless tube can be used in heat exchanger and condenser, cryogenic pipes, sea transportation pipe. Manufacture of sheet, strip, rods, tubes, casting parts. Copper from 62% to 68%, strong plasticity, manufacturing pressure equipment.

    Brass Strip C26800

    Yellow Brass, as it is commonly known, is among the highest zinc-containing brasses available to designers. Exhibiting a handsome yellow color associated with brasses this alloy finds use in many of the same applications as other high brasses. C2680 offers similar mechanical and physical properties to that of other brasses and is often found in applications requiring an economical copper-based alloy. Designers considering applications requiring a material capable of heavy deep drawing should consider alloy C26800.

    Standard: JIS C2680, USN C26800


    Chemical Composition (%)
    Cu64.0-68.0Znbalance
    Physical Properties
    Density g/cm38.5Coefficient of thermal expansion 10-6 /℃ 20/℃-100/℃20.3
    Electrical conductivity IACS%(20℃)27minThermal Conductility W/(m*k)121
    Modulus of elasticity (KN/mm2)103
    TemperTensile strength (RM, Mpa)Yield Strength (Rp0.2, Mpa)Elongation A50(%)Vickers Hardness (HV)
    O295 min-45 min90 max
    1/4 H330-415-40 min90-105
    1/2 H370-440-30 min105-130
    3/4H410-470-20 min130-145
    H430-510-14 min145-160
    EH510-610-8 min160-175
    SH565-630-5 min175-190
    ESH610-725--190-210

    We manufacture Brass Strips in different grades, sizes and thickness as per customer requirement. Theses are widely used in Various Industrial applications across the world.

    Our company Tankii holds expertise in supplying a wide array of Brass Strips that is used in making electrical equipment. Available in different sizes and dimensions, these Brass Strips are designed as per the specifications mentioned by the customers. These strips are inbuilt with cold-workability feature that makes possible intensive. However, our clients can avail these products from us in various standards and customized specifications as per their demands.

    NameStateElongationNational Standard

    C22000(H90)

    CuZn10

    Soft

    Hardness

    ≥35

    ≥3

    GB/T2059-2000

    C26000(H70 H68 )

    CuZn30 CuZn32

    C26800(H65)

    Soft

    Hardness

    ≥40

    ≥4

    GB/T2059-2000
    CuZn38

    Soft

    Hardness

    ≥35

    ≥2.5

    GB/T2059-200
