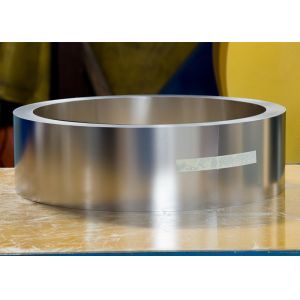

    1Cr13Al4 Fecral Foil Resistance Heating Strip Alkrothal 14 For Ceramic Resistor

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : 1Cr13Al4
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 tons/year
    Delivery Time : 2 days after getting the payment
    • Product Details
    • Company Profile

    1Cr13Al4 Fecral Foil Resistance Heating Strip Alkrothal 14 For Ceramic Resistor


    1Cr13Al4 Fecral foil resistance heating strip Alkrothal 14 alloy for ceramic resistor

    Product packaging:

    1. Filament winding, waterproof film winding + bubble bag plastic packaging, cartons;

    2. Thick wire and strip are coiled, wrapped with waterproof film + bubble bag, and packed in woven bag;

    3. Bars and tubes can be packed in wooden cases

    4. It can meet special packaging requirements.


    Shanghai Tankii havs stock of 1Cr13Al4 with the following sizes for your choose:
    1.2*90mm
    1.0*250mm
    1.5*130mm
    1.0*90mm
    The features of FeCrAl resistance electrothermal alloy:
    1. High resistivity
    2. Good surface oxidation resistance
    3. High strength at high temperature
    4. Good processing performance and weldability

    1Cr13Al4 Fecral foil resistance heating strip Alkrothal 14 alloy for ceramic resistor


    3. Details of tankii strips
    Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
    Properties Grade
    1Cr13Al4
    0Cr25Al5
    0Cr21Al6
    0Cr23Al5
    0Cr21Al4
    0Cr21Al6Nb
    0Cr27Al7Mo2
    Main Chemical Composition
    (%)

    Cr
    12.0-15.0
    23.0-26.0
    19.0-22.0
    22.5-24.5
    18.0-21.0
    21.0-23.0
    26.5-27.8
    Al
    4.0-6.0
    4.5-6.5
    5.0-7.0
    4.2-5.0
    3.0-4.2
    5.0-7.0
    6.0-7.0
    Re
    opportune
    opportune
    opportune
    opportune
    opportune
    opportune
    opportune
    Fe
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.
    Bal.






    Nb0.5
    Mo1.8-2.2
    Max Continuous Service Temperature(oC)
    950
    1250
    1250
    1250
    1100
    1350
    1400
    Resisivity 20oC (Ωmm2/m)
    1.25
    ±0.08

    1.42
    ±0.06

    1.42
    ±0.07

    1.35
    ±0.07

    1.23
    ±0.07

    1.45
    ±0.07

    1.53
    ±0.07

    Density(g/cm3)
    7.4
    7.1
    7.16
    7.25
    7.35
    7.1
    7.1
    Thermal Conductivity
    52.7
    46.1
    63.2
    60.2
    46.9
    46.1
    45.2
    (KJ/m@h@oC)
    Coefficient of Thermal Expansion(α×10-6/oC)
    15.4
    16
    14.7
    15
    13.5
    16
    16
    Approximate Melting Point( oC)
    1450
    1500
    1500
    1500
    1500
    1510
    1520
    Tensile Strength(N/mm2)
    580-680
    630-780
    630-780
    630-780
    600-700
    650-800
    680-830
    Elongation(%)
    >16
    >12
    >12
    >12
    >12
    >12
    >10
    Section Variation
    65-75
    60-75
    65-75
    65-75
    65-75
    65-75
    65-75
    Shrink Rate (%)
    Repeatedly Bend Frequency(F/R)
    >5
    >5
    >5
    >5
    >5
    >5
    >5
    Hardness (H.B.)
    200-260
    200-260
    200-260
    200-260
    200-260
    200-260
    200-260
    Continuous Service Time
    no
    ≥80/1300
    ≥80/1300
    ≥80/1300
    ≥80/1250
    ≥50/1350
    ≥50/1350
    Micrographic Structure
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Ferrite
    Magnetic Property
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic
    Magnetic

    1Cr13Al4 Fecral foil resistance heating strip Alkrothal 14 alloy for ceramic resistor

    1. Description
    FECRAL Has been used extensively as heating elements in industrial furnaces and electrical kilns.
    FECRAL Has less hot strength than Tophet alloys but much higher melting point.



    2. Specification

    ribbonStrip
    Thickness0.04mm-1.0mm0.04mm-1.5mm
    Widthbelow 6mmbelow 200mm




    Application:


    1Cr13Al4 Fecral Foil Resistance Heating Strip Alkrothal 14 For Ceramic Resistor



    4. Why choose us

    1. Good Quality

    2. Fast shipment

    3. Small MOQ

    4. Big Width for 1Cr13Al4 strip

    5. Good reputation in the international market


    1Cr13Al4 Fecral foil resistance heating strip Alkrothal 14 alloy for ceramic resistor
