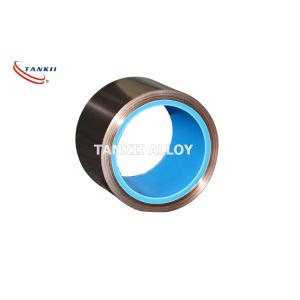

    Buy cheap 0.015mm Manganese Copper Alloy For Wheatstone Bridges from wholesalers

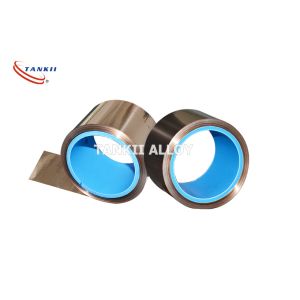

    Buy cheap 0.015mm Manganese Copper Alloy For Wheatstone Bridges from wholesalers
    • Buy cheap 0.015mm Manganese Copper Alloy For Wheatstone Bridges from wholesalers
    • Buy cheap 0.015mm Manganese Copper Alloy For Wheatstone Bridges from wholesalers
    • Buy cheap 0.015mm Manganese Copper Alloy For Wheatstone Bridges from wholesalers

    0.015mm Manganese Copper Alloy For Wheatstone Bridges

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : 6J12
    Certification : Rohs
    Price : USD19~25/kg
    Payment Terms : T/T, Western Union
    Supply Ability : 1000tons per year
    Delivery Time : 5~15 days as per the order qty
    • Product Details
    • Company Profile

    0.015mm Manganese Copper Alloy For Wheatstone Bridges

    Manganese Copper Alloy 6J12 0.015mm Foil /Strip For Wheatstone Bridges

    1. Description

    Manganin is a copper-manganese-nickel resistance alloy. It combines all the properties required of a precision electrical resistance alloy such as high resistivity, low temperature coefficient of resistance, very low thermal effect against copper and good performance of electrical resistance over long periods of time.


    Parements of Manganin material:

    Item6J86J126J13
    Resistivity0.35±0.050.47±0.030.44±0.04
    TCRx10-6/°c-5~+10-10~+200~40
    EMF V S Cu(0-100°c)uv/°c≤2≤1≤2
    Density(g/cm3)8.78.48.4
    Melting point (°c)960960960
    Tensile strength(MPa)490--539490--539490--539
    Elongation(%)10-3010-3010-30
    Service temperature(°c)10-805-4510-80

    Product Designations: 6J12, 6J13, 6J40 etc.


    Main chemical composition :

    Alloy typeCuMnNi
    6J8rest8-10/
    6J12rest11-132-3
    6J13rest11-132-5

    Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.

    Tankii's manganin/constantan in our company belongs to copper-manganese alloy. Compared with traditional manganin/constantan, it has high dimensional accuracy, excellent processability, stable resistivity, and its material utilization could increase by more than 50% in the manufacturing process.

    Manganin has good piezoresistive effect and is widely used in pressure measurement in high temperature and high pressure environments such as detonation, high-speed impact, dynamic fracture, new material synthesis and so on.

    Tankii can supply foil, strip, sheet, wire, ribbon etc.

    2. Characteristics:

    Small temperature coefficient of resistance,
    Low identical electromotive force
    Special excellent resistance stability
    Good welding performance
    Good machining performance,



    In the electrical and instrument measuring technology as well as the benchmark unit with a resistor is widely used.

    Manganese copper alloy has good welding performance and machining performance, can form the fine silk, rolling piece, foil, but poor corrosion resistance and oxidation resistance.


    3. Packing detail

    1). Coil (plastic spool) + compressed ply-wooden case + pallet
    2). Coil (plastic spool) + carton + pallet
    3. Products and services

    4. Why pick us?

    1. Good Quality

    2. Fast shipment

    3. Small MOQ

    4. Good reputation in the international market
