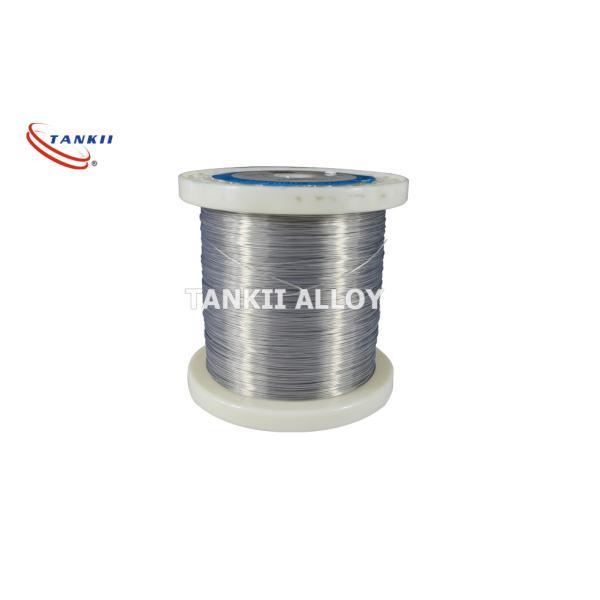

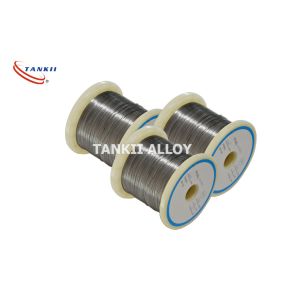

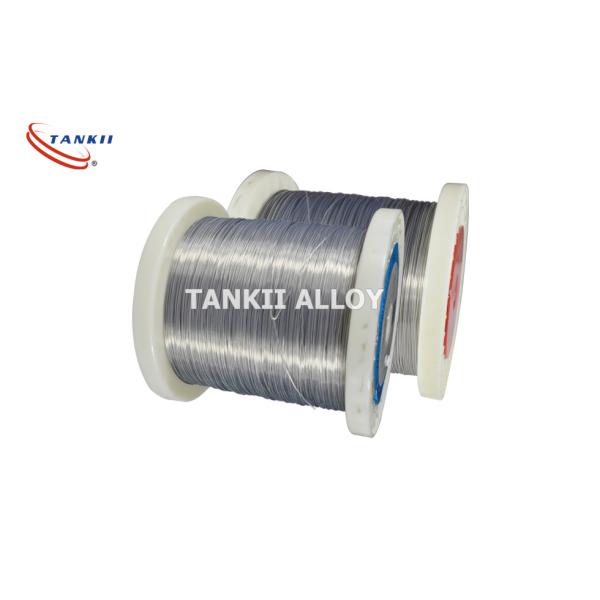

1Cr13al4 Alkro-thal 14 alloy 750 Bright and Annealed Heating Wire
1Cr13Al4 is an iron-chromium-aluminium alloy (FeCrAl alloy) for use
at temperatures up to 750°C (1382°F). The alloy with the
characteristics of high resistivity, low temperature coefficient of
electric resistance, high operating temperature, good oxidation
resistance under high temperature.
It is widely used in industrial electric furnace, household
electrical appliance and far infrared ray device. Such as panel
heaters, infrared heaters, warming plates, in cartridge heaters,
storage heaters, ceramic heaters for cooking plates, kilns
elements, radiators, in quartz tube heaters for space heating,
toasters, toaster ovens, industrial infrared dryers, coils on
molded ceramic fibre for cooking plates with ceramic hobs and so
on.
FeCrAl,a family of iron-chromium-aluminum alloys used in a wide
range of resistance and high-temperature applications is also used
in the form of resistance wires.
FeCrAl resistance electrothermal alloy has high resistivity, good
surface oxidation resistance , and high strength at high
temperature, good processing performance and weldability , can be
widely used in gold , household appliances , machinery
manufacturing industry as heating elements and electrical industry
as resistance materials.
Chemical Content, %
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max |
| 0.12 | 0.025 | 0.020 | 0.50 | ≤0.7 | 12.0~15.0 | ≤0.60 | 4.0~6.0 | Balance | - |
| | | | | | | | | | | |
Max Continuous Service Temperature:
Resisivity 20ºC:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property: | 950ºC
1.25ohm mm2/m
7.40g/cm3
52.7 KJ/m·h·ºC
15.4*10-6/ºC (20ºC~1000ºC)
1450ºC
Min 16%
Ferrite
magnetic |
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1.000 | 1.005 | 1.014 | 1.028 | 1.044 | 1.064 | 1.090 |
| |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.120 | 1.132 | 1.142 | 1.150 | - | - | - |
Feature:
With long service life.Heating up fast.High thermal
efficiency.Temperature uniformity. Can use vertically. When being
used in the rated voltage,there is no volatile matter.It i the ne
environmental protection electric heating wire.And an alternative
to the costly nichrome wire.Can be customized according to customer
requirements
Usage:
It is widely used in industrial furnace, household electrical
appliances, infrared heater, etc.
The key properties:
1.The thickness of surface insulation resistance to oxidation
layer: 5-15 μ m.
2. Insulation resistance: multimeter detection infinity.
3.The voltage-endurance of insulating single layer is greater than
the alternating voltage 60 ν without breakdown.
4. The use of voltage: 6-380 ν.
5. Using temperature: Maximum1200 ºC
6. Service life: not less than 6000 hours.
7.Thermal shock performance: Electric heating element can withstand
the cold and hot impact 600-6000 times without deformation.
