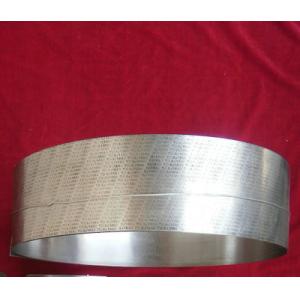

    Buy cheap 6j12 Manganin Precision Alloy Non Magnetic For Resistors from wholesalers

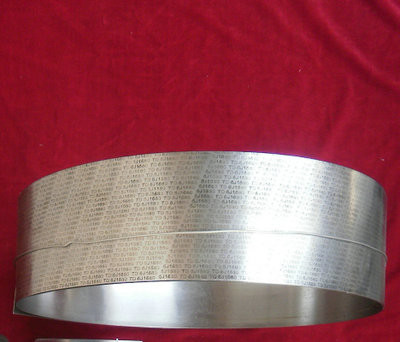

    Buy cheap 6j12 Manganin Precision Alloy Non Magnetic For Resistors from wholesalers
    • Buy cheap 6j12 Manganin Precision Alloy Non Magnetic For Resistors from wholesalers
    • Buy cheap 6j12 Manganin Precision Alloy Non Magnetic For Resistors from wholesalers
    • Buy cheap 6j12 Manganin Precision Alloy Non Magnetic For Resistors from wholesalers

    6j12 Manganin Precision Alloy Non Magnetic For Resistors

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : 6J12
    Certification : DIN, ASTM, JIS
    Price : 15-30$
    Supply Ability : 1000T/month
    Delivery Time : 25days
    MOQ : 20kg
    • Product Details
    • Company Profile

    6j12 Manganin Precision Alloy Non Magnetic For Resistors

    Manganin alloy Manganese Copper resistance wire 6J12


    Specifications
    manganin wire/CuMn12Ni2 Wire used in rheostats, resistors,shunt etc manganin wire 0.08mm to 10mm 6J13, 6J12, 6J11 6J8
    Manganin wire( cupro-manganese wire ) is a trademarked name for an alloy of typically 86%copper,12%manganese, and 2-5%nickel .
    Manganin wire and foil is used in the manufactue of resistor,particularly ammeter shunts ,because of its cirtually zero temperature cofficient of resintance value and long terms stability.

    Chemical Content, %

    NiMnFeSiCuOtherROHS Directive
    CdPbHgCr
    2~511~13<0.5microBal-NDNDNDND

    Mechanical Properties

    Max Continuous Service Temp0-100ºC
    Resisivity at 20ºC0.44±0.04ohm mm2/m
    Density8.4 g/cm3
    Thermal Conductivity40 KJ/m·h·ºC
    Temp Coefficient of Resistance at 20 ºC0~40α×10-6/ºC
    Melting Point1450ºC
    Tensile Strength(Hard)585 Mpa(min)
    Tensile Strength,N/mm2 Annealed,Soft390-535
    Elongation6~15%
    EMF vs Cu, μV/ºC (0~100ºC)2(max)
    Micrographic Structureaustenite
    Magnetic Propertynon
    Hardness200-260HB
    Micrographic StructureFerrite
    Magnetic PropertyMagnetic

    Application of Manganin

    Manganin foil and wire is used in the manufacture of resistor, Particularly ammeter shunt, because of its virtually zero temperature coefficient of resistance value and long term stability.
    The copper-based low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

    Copper nickel alloy series:Constantan CuNi40 (6J40), CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.

    Size dimension range:
    Wire: 0.1-10mm
    Ribbons: 0.05*0.2-2.0*6.0mm
    Strip: 0.05*5.0-5.0*250mm

    Main grades and properties

    TypeElectrical resistivity
    (20degreeΩ
    mm²/m)
    temperature coefficient of resistance
    (10^6/degree)
    Dens
    ity
    g/mm²
    Max. temperature
    (°c)
    Melting point
    (°c)
    CuNi10.03<10008.9/1085
    CuNi20.05<12008.9
    200
    1090
    CuNi60.10<6008.92201095
    CuNi80.12<5708.92501097
    CuNi100.15<5008.92501100
    CuNi140.20<3808.93001115
    CuNi190.25<2508.93001135
    CuNi230.30<1608.93001150
    CuNi300.35<1008.93501170
    CuNi340.40-08.93501180
    CuNi400.48±408.94001280
    CuNi440.49<-68.94001280
