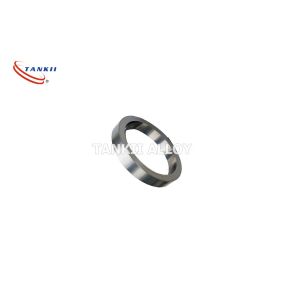

    Heat Resistant Fecral 0cr21al4 Heating Foil 1.0mm Width

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : Fe-Cr-Al
    Certification : ISO9001 SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200 Tons per month
    Delivery Time : 7-20 days
    • Product Details
    • Company Profile

    Heat Resistant Fecral 0cr21al4 Heating Foil 1.0mm Width

    FeCrAl(0Cr21Al4) Heating Strip

    1. Description
    FeCrAl Heating Strip With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.

    2. Specification
    Wire: Diameter: 0.15mm-8.0mm

    Strip: Thickness: 0.6mm-3.0mm
    Width: 5mm-250mm

    3. Usage
    FeCtAl Heating Alloy is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

    4. Features
    The features of FeCtAl Heating Alloy are Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

    5. Packing detail
    1) Coil (plastic spool) + compressed ply-wooden case + pallet
    2) Coil (plastic spool) + carton + pallet

    6. Products and services
    1). Pass: ISO9001 certification, and SO14001cetification;
    2). Fine after-sale services;
    3). Small order accepted;
    4). Stable properties in high temperature;
    5). Fast delivery;

    SiCrNiAlFeOther
    Max 1.018.0~21.0Max 0.603.0~4.2Bal.-


    Mechanical Properties

    The allowable tolerance of alloy strip GB/T1234-2012
    CategoryThickness ( mm )Tolerance ( mm)
    Common precisionHigh precision
    Cold-rolled strip0.05 ~ 0.1±0.01±0.005
    0.1 ~ 0.2±0.015±0.01
    0.2 ~ 0.5±0.02±0.015
    0.5 ~ 1.0±0.03±0.025
    1.0 ~ 1.8±0.04±0.03
    1.8 ~ 2.5±0.05±0.04
    2.5 ~ 4.0±0.06±0.05
    Hot-rolled Strip2.5 ~ 5.0±0.25±0.2
    5.0 ~ 7.0±0.3±0.25
    7.0 ~ 10.0±0.4±0.35
    10.0 ~ 20.0±0.5±0.45
    The allowable tolerance of alloy strip GB/T1234-2012
    CategoryWidth ( mm )Tolerance ( mm )
    side cutNonside cut
    Common precisionHigh precision
    Cold-rolled Strip5.0 ~ 10.0±0.2±0.1-0.6
    10.0 ~ 20.0-0.8
    20.0 ~ 30.0-1
    30.0 ~ 50.0±0.3±0.15-1.2
    50.0 ~ 100.0±1.0
    100.0 ~ 200.0±0.5±0.25±1.5
    200.0 ~ 300.0±1.8
    Hot-rolled Strip15.0 ~ 60.0/±1.5
    60.0 ~ 200.0±2.5
    200.0 ~ 300.0±3.0

    Max Continuous Service Temp1100ºC
    Resisivity at 20ºC1.23 ohm mm2/m
    Density7.35 g/cm3
    Thermal Conductivity46.9 KJ/m@h@ºC
    Coefficient of Thermal Expansion13.5×10-6/ºC
    Melting Point1500ºC
    Tensile Strength637~784 Mpa
    ElongationMin 12%
    Section Variation Shrink Rate65~75%
    Repeatedly Bend FrequencyMin 5 times
    Continuous Service Time-
    handness200-260HB
    Micrographic StructureFerrite
    Magnetic PropertyMagnetic
