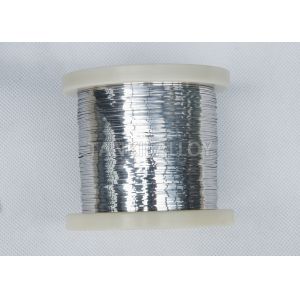

    Buy cheap Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing from wholesalers

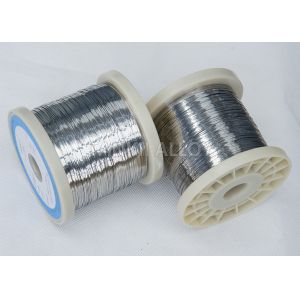

    Buy cheap Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing from wholesalers

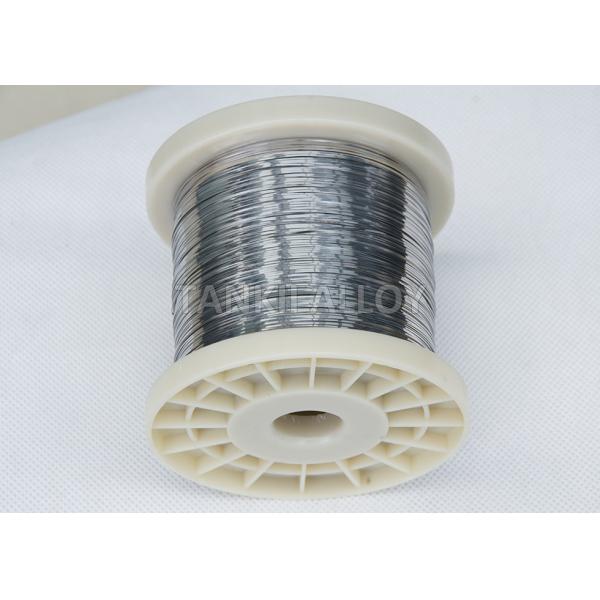

    • Buy cheap Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing from wholesalers

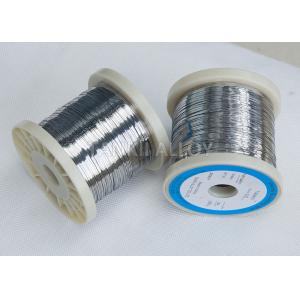

    • Buy cheap Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing from wholesalers
    • Buy cheap Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing from wholesalers
    • Buy cheap Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing from wholesalers

    Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : Alloy 52
    Certification : ISO9001:2015
    Price : Negotiated price
    Payment Terms : L/C, T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 200+TON+MONTH
    Delivery Time : 7-12 DAYS
    • Product Details
    • Company Profile

    Bright Surface Precision Wires Ferronickel Material With Annealed / Cold Drawing

    Alloy 52 0.25mm*0.64mm Precision Alloy Flat Wire/ Ribbon Wire


    General Information:


    APPLICATIONS

    Applications for Alloy 52 include magnetic reed switches and seals that need controlled linear expansion to approximately 977 °F (525 °C).

    DESCRIPTION

    Alloy 52 is a 50.50% nickel-iron alloy developed for glass-to-metal seals for some of the soft glasses and some ceramics. The alloy's rate of thermal expansion is virtually constant to a temperature of about 1050 °F (565 °C).

    CHEMISTRY TYPICAL

    Carbon: 0.05 max
    Silicon: 0.30 max
    Manganese: 0.60 max
    Nickel: 50.5 nom
    Chromium: 0.25 max
    Iron: Balance
    Phosphorus: 0.025 max
    Sulfur: 0.025 max
    Aluminum: 0.10 max

    Chemical compositions(%)
    AlloyNiFe
    4J4241.5~42.5rest
    4J4544.5~45.5rest
    4J5049.5~50.5rest
    4J5251.5~52.5rest
    4J5453.5~54.5rest

    PHYSICAL PROPERTIES

    Density: 0.30 lb/in3, 8.30 g/cm3

    Electrical Resistivity: ohm-cir-mil/ft, microhm-cm:
    At 68 °F (20 °C): 258 (43)

    Thermal Conductivity: BTU-in/hr-ft2-°F (W/m•K):
    68 - 212 °F (20 - 100 °C): 97 (140)

    Mean Coefficient of Thermal Expansion: µin/in-°F (µm/m-°C):
    77 - 842 °F (25 - 450 °C): 5.4 (9.8)

    Melting Range: 2600 °F (1430 °C)

    FORMS

    Coil - Sheet, Strip, Ribbon
    Wire - Profile, Round, Flat, Square

    MECHANICAL PROPERTIES AT ROOM TEMPERATURE

    PROPERTIES: ANNEALED TYPICAL

    Ultimate Tensile Strength: 78 KSI nom (536 MPa nom)
    Yield Strength: 35 KSI nom (240 MPa nom)
    Elongation: 30% nom
    Hardness: Rb 73 nom

    PROPERTIES: TEMPERED

    Alloy 52 can be cold worked to various tempers. Contact Ulbrich Technical Service for additional information.

    ADDITIONAL PROPERTIES

    CORROSION RESISTANCE

    Refer to NACE (National Associate of Corrosion Engineers) for recommendations.

    FINISHES

    #1 - Hot rolled annealed and descaled. It is available in strip, foil and ribbon. It is used for applications where a smooth decorative finish is not required.
    #2D - Dull finish produced by cold rolling, annealing and descaling. Used for deep drawn parts and those parts that need to retain lubricants in the forming process.
    #2B - Smooth finish produced by cold rolling, annealing and descaling. A light cold rolling pass is added after anneal with polished rolls giving it a brighter finish than 2D.
    #BA - Bright annealed cold rolled and bright annealed
    #CBA - Course bright annealed cold rolled matte finish and bright anneal
    #2 - Cold Rolled
    #2BA- Smooth finish produced by cold rolling and bright annealing. A light pass using highly polished rolls produces a glossy finish. A 2BA finish may be used for lightly formed applications where a glossy finish is desired in the formed part.
    Polished - Various grit finish for specific polish finished requirements.
