    0.12mm 310mm Etching FeCrAl Strip 0cr13al4 Strip For E Cigarette Grey Color

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : 0Cr13Al4
    Certification : ISO9001
    Price : 7-20 usd / kg
    Payment Terms : T/T, Western Union
    Supply Ability : 10000 ton / month
    Delivery Time : 5-35 days
    • Product Details
    • Company Profile

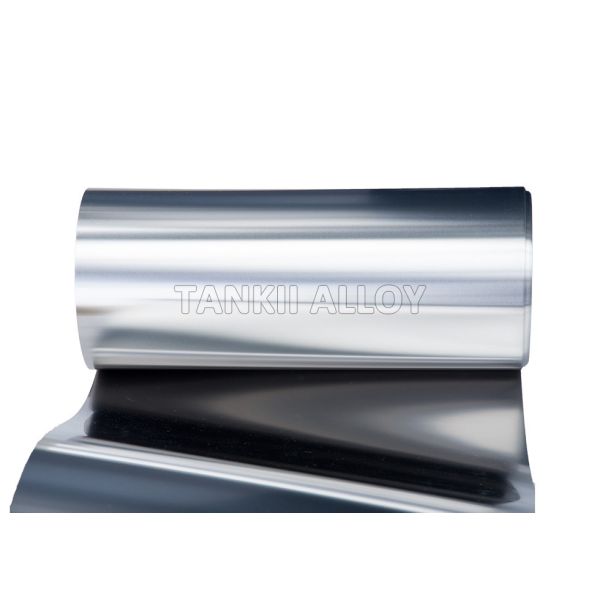

    0.12mm 310mm Etching FeCrAl Strip 0cr13al4 Strip For E Cigarette Grey Color

    0.12mm 310mm Etching FeCrAl strip thickness 0cr13al4 strip For e-cigarette on stock

    Specification


    Grade: 1Cr13AL4, 0Cr15AL5, 0Cr23AL5, 0Cr25AL5, 0Cr21AL6Nb0Cr27AL7Mo2


    Size: Wire: 0.15~10mm


    Bar: 12~120mm


    Alloy Nomenclature Performance1Cr13Al40Cr25Al50Cr21Al60Cr23Al50Cr21Al40Cr21Al6Nb0Cr27Al7Mo2
    Main Chemical compositionCr12.0-15.023.0-26.019.0-22.020.5-23.518.0-21.021.0-23.026.5-27.8
    Al4.0-6.04.5-6.55.0-7.04.2-5.33.0-4.25.0-7.06.0-7.0
    Reopportuneopportuneopportuneopportuneopportuneopportuneopportune
    FeRestRestRestRestRestRestRest
    Nb0.5Mo1.8-2.2
    Max. continuous service temp. of element(°C)950125012501250110013501400
    Resistivity at 20ºC(μΩ·m)1.251.421.421.351.231.451.53
    Density(g/cm3)7.47.17.167.257.357.17.1
    Thermal conductivity(KJ/m·h·ºC)52.746.163.260.246.946.1--
    Coefficient of lines expansion(α×10-6/ºC)15.41614.71513.51616
    Melting point approx.( ºC)1450150015001500150015101520
    Tensile strength(N/mm2)580-680630-780630-780630-780600-700650-800680-830
    Elongation at rupture(%)>16>12>12>12>12>12>10
    Variation of area(%)65-7560-7565-7565-7565-7565-7565-75
    Repeat Bending frequency(F/R)>5>5>5>5>5>5>5
    Hardness(H.B.)200-260200-260200-260200-260200-260200-260200-260
    continuous service time(Hours/ ºC)--≥80/1300≥80/1300≥80/1300≥80/1250≥50/1350≥50/1350
    Micrographic structureFerriteFerriteFerriteFerriteFerriteFerriteFerrite
    Magnetic propertiesMagneticMagneticMagneticMagneticMagneticMagneticMagnetic

    Description
    With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature. It is mainly used in electric ceramic cooktop, industrial furnace.

    Usage
    It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

    Features
    Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
