    FLAME ROD Heating Alloy Wire Spark Wire Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire For Central Igniter Electrode

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : A1
    Certification : ISO 9001
    Price : Negotatioin
    Payment Terms : T/T, Western Union
    Supply Ability : 20000kg/month
    Delivery Time : 5-30 days
    • Product Details
    • Company Profile

    FLAME ROD Heating Alloy Wire Spark Wire Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire For Central Igniter Electrode

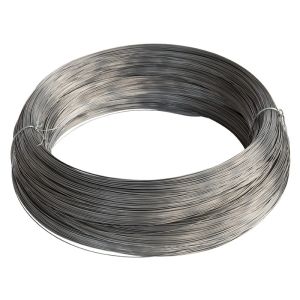

    Dia 2mm 3mm 1.7mm fe-cr-al A1 wire FLAME ROD heating alloy wire for central igniter electrode


    Resistance heating wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy. Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.


    A-1 is a ferritic iron-chromium-aluminium alloy (FeCrAl alloy) for use at temperatures up to 1400°C (2550°F). The alloy is characterized by high resistivity and very good oxidation resistance.


    Specifications
    STANDARD: GB1234-2012
    Main chemical composition
    Cr:22%,Al:6%,Nb:0.5%
    Max. continues service temp.
    1350°C
    Resistivity at 20 °C
    1.45±0.07
    Density (g/cm3)
    7.10
    Thermal conductivity(KJ/m.h.°C)
    46.1
    Melting point appox °C
    1510
    Elongation at rupture %
    >12
    Min tensile strength in N/mm2
    637
    Hardness
    200~260

    Grade1Cr13Al4TK10Cr25Al50Cr20Al6Re0Cr23Al50Cr19Al30Cr21Al6Nb0Cr27Al7Mo2

    Nominal

    composition

    %

    Cr12.0-15.022.0-26.023.0-26.019.0-22.022.5-24.518.0-21.021.0-23.026.5-27.8
    Al4.0-6.05.0-7.04.5-6.55.0-7.04.2-5.03.0-4.25.0-7.06.0-7.0
    Reopportune0.04-1.0opportuneopportuneopportuneopportuneopportuneopportune
    FeBal.Bal.Bal.Bal.Bal.Bal.Bal.
    Nb0.5Mo1.8-2.2
    Resistivity 20ºC1.251.481.421.401.351.231.451.53
    Density(g/cm³)7.47.17.17.167.257.357.17.1
    Max continuous operating temperature(ºC)6501400125012501250110013501400

    FLAME ROD Heating Alloy Wire Spark Wire Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire For Central Igniter ElectrodeFLAME ROD Heating Alloy Wire Spark Wire Dia 2mm 3mm 1.7mm Fe-Cr-Al A1 Wire For Central Igniter Electrode
