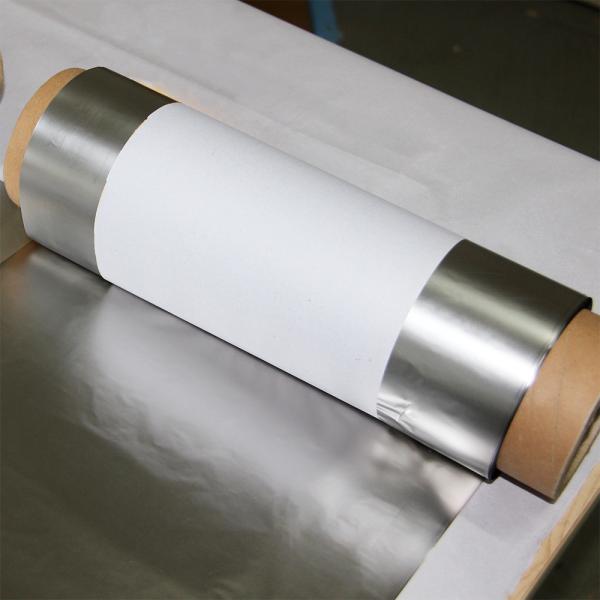

    6μM-10μM Super Width 1300mm 99.6% Pure Nickel Foil For Battery

    6μm-10μm Super width 1300mm 99.6% Pure nickel foil for battery


    Commercially wrought Nickel foil strip , a grade of pure nickel contains 99.96% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel foil strip is useful in any environment below 600℉(315℃). It has highly resistance to neutral and alkaline salt solutions.

    Nickel foil strip also has low corrosion rates in neutral and distilled water.

    The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.


    Physical Data

    Density8.89g/cm3
    purity99.96%
    Electrical Resistivity0.076×10-6ohm.m
    Thickness5um -50um
    width1330mm
    Surface0.15-0.25Ra


    NI200 / NI 201
    It has good mechanical strength,corrosion-resistant and heat-resistance strength.

    It is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteriesomputers, cellular Phone, power tools, camcorders and so on.

    Chemical Composition

    GradeElement Composition/%
    Ni+CoMnCuFeCSiCrS
    Ni201≥99.0≤0.35≤0.25≤0.30≤0.02≤0.3≤0.2≤0.01
    Ni200≥99.0/≤0.35≤0.25≤0.30≤0.15≤0.3≤0.2≤0.01

    Propertis

    GradeDensityMelting pointCoefficient of expansionModulus of rigidityModulus of elasticityElectrical resistivity
    Ni2008.9g/cm31446°C13.3 µm/m °C (20-100°C)81kN/mm2204kN/mm29.6μW• cm
    Ni2011446°C13.1µm/m °C(20-100°C)82kN/mm2207kN/mm28.5μW• cm

    Diameter(mm)Tolerance(mm)Diameter(mm)Tolerance(mm)
    0.03-0.05±0.005>0.50-1.00±0.02
    >0.05-0.10±0.006>1.00-3.00±0.03
    >0.10-0.20±0.008>3.00-6.00±0.04
    >0.20-0.30±0.010>6.00-8.00±0.05
    >0.30-0.50±0.015>8.00-12.0±0.4

    Specification of Cold-drawing Strip Type

    Thickness(mm)Tolerance(mm)Width(mm)Tolerance(mm)
    0.05-0.10±0.0105.00-10.0±0.2
    >0.10-0.20±0.015>10.0-20.0±0.2
    >0.20-0.50±0.020>20.0-30.0±0.2
    >0.50-1.00±0.030>30.0-50.0±0.3
    >1.00-1.80±0.040>50.0-90.0±0.3
    >1.80-2.50±0.050>90.0-120.0±0.5
    >2.50-3.50±0.060>120.0-250.0±0.6
