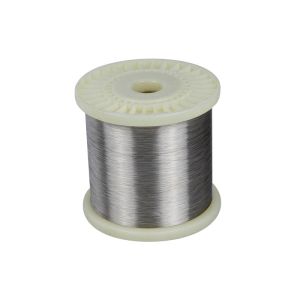

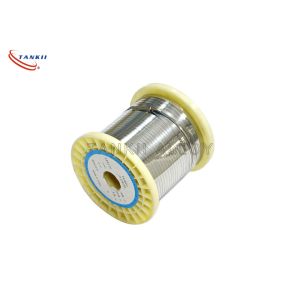

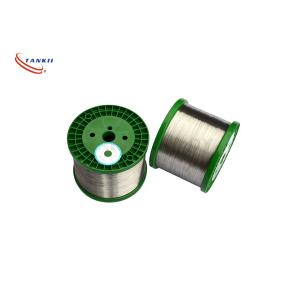

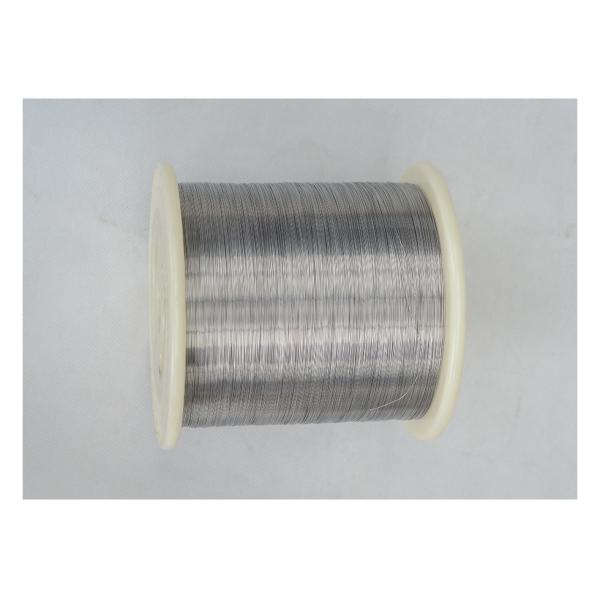

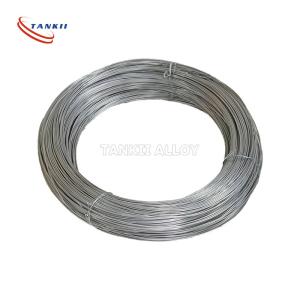

    Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : 0Cr23Al5
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union, Paypal
    Supply Ability : 60+TON+MONTH
    Delivery Time : 7-20 DAYS
    • Product Details
    • Company Profile

    Rolling Annealing FeCrAl 0Cr23Al5 Low Resistance Wire

    Detailed Product Description
    High Light:

    fecral wire

    ,

    high temperature wire


    0Cr23Al5 Low Resistance Wire FeCrAl Alloy High Heat Wire Forging , Rolling , Annealing


    0Cr23Al5

    0Cr23Al5 is one kind of normal material of Fe-Cr-Al alloy.
    FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
    It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.


    FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.


    They are typically used in electrical heating elements in industrial furnaces and home appliances.


    Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.

    Forms:wire, bar, strip,sheet/plate,forging,tube/pipe,etc.


    Manufacture Processs The manufacture started with producing ingot by advanced vacuum melting process. The wire production includes forging, rolling, annealing and drawing. From the ingot to the final thin wire, manufacture process is operated with high standard quality control system. There will be quality test for each batch of product, such as test to diameter tolerance, content, hardness, etc.


    0Cr23Al5

    Chemical Content, %

    CPSMnSiCrNiAlFeOther
    Max
    0.060.0250.0200.50≤0.620.5-23.5≤0.604.2-5.3Balance-

    Mechanical Properties

    Max Continuous Service Temperature:

    Resisivity 20℃:

    Density:

    Thermal Conductivity:

    Coefficient of Thermal Expansion:

    Melting Point:

    Elongation:

    Micrographic Structure:

    Magnetic Property:

    1300℃

    1.35+/-0.06ohm mm2/m

    7.25g/cm3

    60.2 KJ/m·h·℃

    15.0×10-6/℃ (20℃~1000℃)

    1500℃

    Min 12%

    Ferrite

    magnetic


    Temperature Factor of Electrical Resistivity

    20℃100℃200℃300℃400℃500℃600℃
    1.0001.0021.0071.0141.0241.0361.056
    700℃800℃900℃1000℃1100℃1200℃1300℃
    1.0641.0701.0741.0781.0811.0841.084
