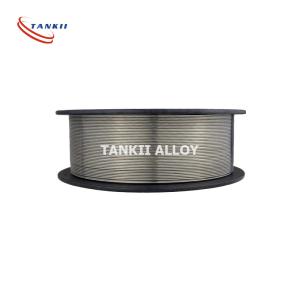

Tafa 75b Nial955 Thermal Spray Wire 2.0mm Diameter

Ask Lasest Price
Brand Name :	TANKII
Model Number :	NiAl95/5
Certification :	ISO9001
Price :	Negotiation
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	20, 000kg/month
Delivery Time :	5-10 days

Add to Cart

Product Details
Company Profile

Tafa 75b Nial955 Thermal Spray Wire 2.0mm Diameter

NiAl95/5

NiAl 95/5 Aolly 1.6mm 2.0mm Thermal Spray Wire Produces Dense , Well Bonding Coatings

Application:Characteristics:

NiAl 95/5: Thermal Spray Wire (Sp 95/5, SD 95/5, Ni95Al5)

NiAl 95/5 is an austenitic nickel-aluminium alloy (NiAl alloy) for use in arc and flame spray systems. The alloy produces dense, well bonding coatings.
Typical applications for NiAl95/5 are bond coats, as protective coatings against high-temperature oxidation, protective coatings against scaling of conventional iron base alloys and as build-up coatings for dimensional restoration.

Chemical Composition: Ni ~ 95, Al ~ 5

Application or Properties: Spray wire with excellent bonding strength. Sprayed layers of this material are-resistant to variation in high temperatures and are used as a buffer layer for all other spraying alloys. Hardness, coating macro: Approximately HRc 22. Maximum working temperature: Approximately 800° C. Layer thickness: Approximately 0.1-0.15 mm.

Types ingredient

HCF-95 Ni95Al5

HCF-25

Ni30Cr20W2Mo3

HCF-40

Ni40Cr25W3Mo4

HCF-80 Ni80Cr20

HCF-01

0Cr25Al5

HCF-50(45CT)

Ni55Cr45Ti

Ni40Cr25W3Mo5

HCF-70 Ni70Cr30

0Cr27Al7Mo2

Monel

Ni63Cu

Diameter: 1.2mm, 1.6mm, 2.0mm, 3.0mm

Thermal spray wire

Thermal Spray Wire is widely used in arc and flange flame spray systems, highly anti-corroision and anti-high temperature, coatings to resist heat and prevent scaling of conventional low alloy steels,bond coats for improving the adhesion of top coatings,coatings on moulds in the glass industry.
Thermal spray wire series: Inconel 625, 45CT, Ni95Al5, Monel 400, Monel K500, Hastelloy C276,Cr20Ni80

Features
 High mechanical properties
 High corrosion resistance
 High temperature coefficient of electrical resistance

 Applications:
 —For vacuum coating
 —For making valves grid, inner components of vacuum valves
 —Components insides the electron tubes
 —For making lead, supporting wire
 —For Electronic components
 —For battery production
 —Strong base of the filter
 —manufacture of connections for heating elements as well as heating spirals in spark-plugs

Specification

Item	Inconel 625	Ni95Al5	45CT	Monel 400	Monel K500	HC-276	Cr20Ni80
C	≤0.05	≤0.02	0.01-0.1	≤0.04	≤0.25	≤0.02	≤0.08
Mn	≤0.4	≤0.2	≤0.2	2.5-3.5	≤1.5	≤1.0	≤0.06
Fe	≤1.0	N/A	≤0.5	≤1.0	≤1.0	4.0-7.0	N/A
P	≤0.01	≤0.01	≤0.01	≤0.01	≤0.01	≤0.01	≤0.02
S	≤0.01	≤0.01	≤0.01	≤0.01	≤0.01	≤0.01	≤0.01
Si	≤0.15	≤0.2	≤0.2	≤0.15	≤0.5	≤0.08	0.75-1.6
Cu	N/A	N/A	N/A	rest	27-33	N/A	N/A
Ni	rest	rest	rest	65-67	rest	rest	rest
Co	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Al	≤0.4	4-5	N/A	≤0.5	2.3-3.15	N/A	N/A
Ti	≤0.4	0.4-1	0.3-1	2.0-3	0.35-0.85	N/A	N/A
Cr	21.5-23	≤0.2	42-46	N/A	N/A	14.5-16	20-23
Nb	3.5-4.15	N/A	N/A	N/A	N/A	N/A	≤1.0
Mo	8.5-10	N/A	N/A	N/A	N/A	15-17	N/A
V	N/A	N/A	N/A	N/A	N/A	≤0.35	N/A
W	N/A	N/A	N/A	N/A	N/A	3.0-4.5	N/A
Impurities	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5

Tafa 75b Nial955 Thermal Spray Wire 2.0mm Diameter

Packaging & Shipping

Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.

Our Services

1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safety, convenience, quick, and cheap mode of transportation for our customers.
