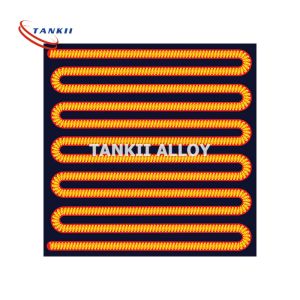

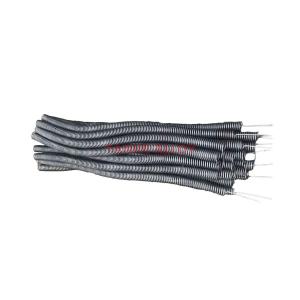

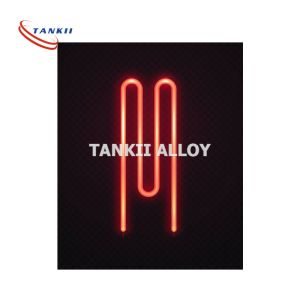

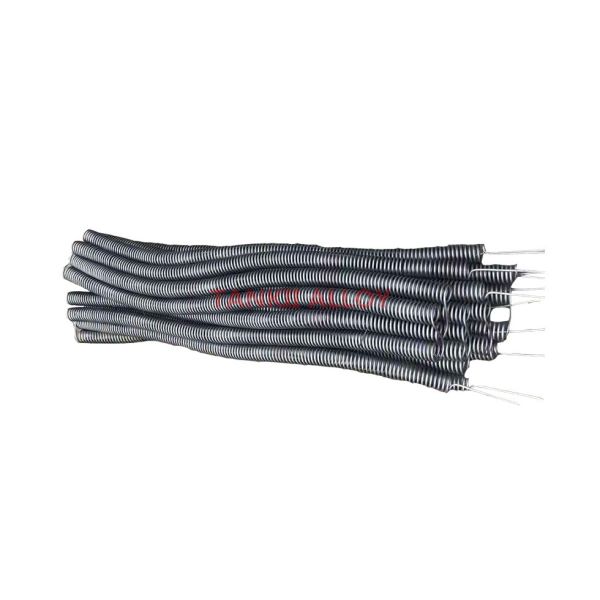

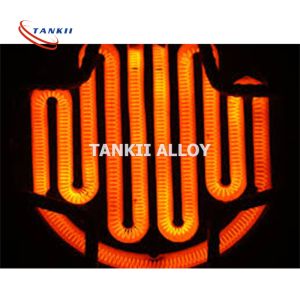

    Buy cheap SUS304 SUS321 Coil Tube Spiral Heater Element Annealing from wholesalers

    Buy cheap SUS304 SUS321 Coil Tube Spiral Heater Element Annealing from wholesalers
    • Buy cheap SUS304 SUS321 Coil Tube Spiral Heater Element Annealing from wholesalers
    • Buy cheap SUS304 SUS321 Coil Tube Spiral Heater Element Annealing from wholesalers
    • Buy cheap SUS304 SUS321 Coil Tube Spiral Heater Element Annealing from wholesalers
    • Buy cheap SUS304 SUS321 Coil Tube Spiral Heater Element Annealing from wholesalers

    SUS304 SUS321 Coil Tube Spiral Heater Element Annealing

    Ask Lasest Price
    Brand Name : TANKII
    Model Number : SUS304/SUS321
    Certification : ISO9001
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 200+ton+month
    Delivery Time : 8-20 days
    • Product Details
    • Company Profile

    SUS304 SUS321 Coil Tube Spiral Heater Element Annealing

    Coil Tube Heating Element

    The stainless steel electric heating tube adopts metal tube as its shell, spiral electric heating alloy wires (nickel chromium and iron chromium alloy) are evenly distributed along the inner center of the tube. the gaps are filled and compacted with magnesium oxide sand with good insulation and heat conductivity. both ends of the tube mouth are sealed with silica gel or ceramic. this metal armored electric heating element can heat air, metal molds and various liquids. According to the different usage status, safety and installation requirements of the electric heating tube, the electric heating tube will also include sealing structure, terminal part structure, flange, temperature control or fuse and other structures.
    Tubular heaters are available in Copper, SS304, SS 310, SS316, SS321, incoloy sheath. Tubular heating elements are available for various industrial & domestic applications. We built every technically possible heaters as per your requirement.

    1.Stove heating element
    2.Pipe material: SUS304,SUS316,SUS321.SUS309S, Incoloy 840
    3.Pipe Diameter: 6.6mm, 8.0mm
    4.Resistance wire: 0CR23A15, NI80CR20,0Cr25Al5
    5.Two terminal 4 Coils with braket type
    Voltage & Power:110V-240V,500W-2000W

    Specifications

    Outer Diameter: 6.3mm~6.5mm
    Surface Colour:GreenBlack
    Model Sizes:4Circles(150mm/165mm/180mm)7" 8"

    Votage:240V
    Power:2600W
    Type:with Bracket/without bracket

    Feature:
    Heating elements for electric stove or cooking equipment
    Long life
    High quality
    When you inquiry, pls supply us the following details:

    1 Heater model, and shape;
    2 Wattage and voltage,power ect.
    3 Usage environmental and max temperature;
    4 Material and surface treatment;
    5 Diameter and length of tube;
    6 The drawing is preferred.
