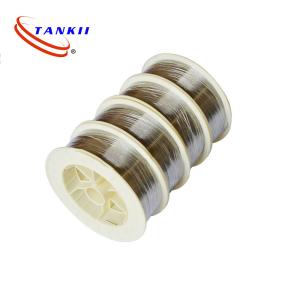

    1.6mm 3.2mm Monel 400/K500 Thermal Spray Wire Equivalent To Metco Praxair Ernicu-7 Welding Rods/Wire

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : Monel 400
    Certification : ISO 9001
    Price : Negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000/week
    Delivery Time : 5-30days
    • Product Details
    • Company Profile

    1.6mm 3.2mm Monel 400/K500 Thermal Spray Wire Equivalent To Metco Praxair Ernicu-7 Welding Rods/Wire

    1.6mm 3.2mm Monel 400/K500 Thermal Spray Wire Equivalent to Metco Praxair Ernicu-7 Welding Rods/Wire


    Thermal spray coating wire

    Thermal Spray Wire is widely used in arc and flange flame spray systems, highly anti-corroision and anti-high temperature,
    coatings to resist heat and prevent scaling of conventional low alloy steels,bond coats for improving the adhesion of top
    coatings,coatings on moulds in the glass industry.
    Item
    Inconel 625
    Ni95Al5
    45CT
    Monel 400
    Monel 500
    HC-276
    Cr20Ni80
    C
    ≤0.05
    ≤0.02
    0.01-0.1
    ≤0.04
    ≤0.25
    ≤0.02
    ≤0.08
    Mn
    ≤0.4
    ≤0.2
    ≤0.2
    2.5-3.5
    ≤1.5
    ≤1.0
    ≤0.06
    Fe
    ≤1.0
    N/A
    ≤0.5
    ≤1.0
    ≤1.0
    4.0-7.0
    N/A
    P
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.02
    S
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    ≤0.01
    Si
    ≤0.15
    ≤0.2
    ≤0.2
    ≤0.15
    ≤0.5
    ≤0.08
    0.75-1.6
    Cu
    N/A
    N/A
    N/A
    rest
    27-33
    N/A
    N/A
    Ni
    rest
    rest
    rest
    65-67
    rest
    rest
    rest
    Co
    N/A
    N/A
    N/A
    N/A
    N/A
    N/A
    N/A
    Al
    ≤0.4
    4-5
    N/A
    ≤0.5
    2.3-3.15
    N/A
    N/A
    Ti
    ≤0.4
    0.4-1
    0.3-1
    2.0-3
    0.35-0.85
    N/A
    N/A
    Cr
    21.5-23
    ≤0.2
    42-46
    N/A
    N/A
    14.5-16
    20-23
    Nb
    3.5-4.15
    N/A
    N/A
    N/A
    N/A
    N/A
    ≤1.0
    Mo
    8.5-10
    N/A
    N/A
    N/A
    N/A
    15-17
    N/A
    V
    N/A
    N/A
    N/A
    N/A
    N/A
    ≤0.35
    N/A
    W
    N/A
    N/A
    N/A
    N/A
    N/A
    3.0-4.5
    N/A
    Impurities
    ≤0.5
    ≤0.5
    ≤0.5
    ≤0.5
    ≤0.5
    ≤0.5
    ≤0.5

    ERNiCu-7 has good strength and resists corrosion in many media, including seawater, salts, and reducing acids. And it can be used to overlay over carbon steel, provided a buffer layer of ERNi-1 is used for the first layer. This alloy is not age hardnable and when used to join Monel K-500 has lower strength than the base metal.

    Common Names: Oxford Alloy® 60 FM 60 Techalloy 418
    Standard: AWS 5.14 Class ERNiCu-7 / ASME SFA 5.14 Class ERNiCu-7 ASME II, SFA-5.14 UNS N04060 Werkstoff Nr. 2.4377 ISO SNi4060 Europe NiCu30Mn3Ti

    ERNiCu7 Nickel Alloy 60 is used for MIG, TIG, and SAW welding of copper alloys. It is used for joining base materials such as UNS number NO4400, NO4405 and NO5500. This alloy can be used for dissimilar welding applications using various nickel-copper alloys to nickel 200 and to copper-nickel alloys.

    Standard: AWS A5.14 EN18274 ,ASME II, SFA-5.14, ERNiCu-7

    Size:0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM

    Form:MIG(15kg/spool), TIG(5kg/box)

    Weling series:ERNiCrMo-3,ERNiCrMo-4,ERNiCrMo-13,ERNiCrFe-3,ERNiCrFe-7,ERNiCr-3,ERNiCr-7,ERNiCu-7,ERNi-1

    WELDING PARAMETERS

    Process
    Diameter
    Voltage
    Amperage
    Gas

    TIG
    .035" (0.9mm)
    .045" (1.2mm) 1/16" (1.6mm) 3/32" (2.4mm)
    1/8" (3.2mm)
    12-15 13-16 14-18 15-20 15-20
    60-90
    80-110
    90-130
    120-175
    150-220
    100% Argon 100% Argon 100% Argon 100% Argon 100% Argon

    MIG
    .035" (0.9mm)
    .045" (1.2mm) 1/16" (1.6mm)
    26-29 28-32 29-33
    150-190
    180-220
    200-250
    75% Argon+25%Helium
    75% Argon+25%Helium
    75% Argon + 25% Helium

    SAW
    3/32" (2.4mm) 1/8" (3.2mm) 5/32" (4.0mm)
    28-30 29-32 30-33
    275-350 350-450 400-550
    Suitable Flux may be used
    Suitable Flux may be used
    Suitable Flux may be used
    TypeStandardManin chemcial composition %Typical application
    Nickel welding wireA5.14 ERNi-1Ni ≥ 93 Ti3 Al1 Cr-- Mo--ERNi-1 is used for GMAW, GTAW and ASAW welding of Nickel 200 and 201, joining these alloys to stainless and carbon steels, and other nickel and copper-nickel base metals. Also used for overlaying steel.
    NiCuwelding wireA5.14 ERNiCu-7Ni 65 Cr-- Mo-- Ti2 Other: CuERNiCu-7 is a copper-nickel alloy base wire for GMAW and GTAW welding of Monel alloys 400 and 404. Also used for overlaying steel after first applying Layer of 610 nickel.
    CuNi welding wireA5.7 ERCuNiNi 30 Cr-- Mo-- Other: CuERCuNi is used for gas metal and gas tungsten arc welding. Can also be used by oxy-fuel welding of 70/30, 80/20, and 90/10 copper nickel alloys. A barrier layer of nickel alloy 610 is recommended prior to overlaying steel with GMAW weld process.
    NiCr welding wireA5.14 ERNiCrFe-3Ni≥ 67 Cr 20 Mo--- Mn3 Nb2.5 Fe2Type ENiCrFe-3 electrodes are used for welding of nickel-chromium-iron alloys to themselves and for dissimilar welding between nickel-chromium-iron alloys and steels or stainless steels.
    A5.14 ERNiCrFe-7Ni: Rest Cr 30 Fe 9Type ERNiCrFe-7 is used for gas-tungsten-arc and gas-metal-arc welding of INCONEL 690.
    NiCrMo welding wireA5.14 ERNiCrMo-3Ni≥ 58 Cr 21 Mo 9 Nb3.5 Fe ≤1.0ERNiCrMo-3 is used primarily for gas tungsten and gas metal arc and matching composition base metals. It is also used for welding Inconel 601 and Incoloy 800. It can be used to weld dissimilar metal combinations such as steel, stainless steel, Inconel and Incoloy alloys.
    A5.14 ERNiCrMo-4Ni Rest Cr 16 Mo 16 W3.7ERNiCrMo-4 is used for welding nickel-chromium-molybdenum base materials to itself, steel and other nickel base alloys and for cladding steel.
    A5.14 ERNiCrMo-10Ni Rest Cr 21 Mo 14 W3.2 Fe 2.5ERNiCrMo-10 is used for welding nickel-chromium-molybdenum base materials to themselves, steel and other nickel base alloys, and for cladding steels. Can be used to weld duplex, super duplex stainless steels.
    A5.14 ERNiCrMo-14Ni Rest Cr 21 Mo 16 W3.7ERNiCrMo-14 is used for gas-tungsten-arc and gas-metal-arc welding of duplex, super-duplex and super-austenitic stainless steels, as well as nickel alloys such as UNS N06059 and N06022, INCONEL alloy C-276, and INCONEL alloys 22, 625, and 686.

    1.6mm 2.0mm 3.2mm High purity Pure Nickel Arc Thermal Spray Wire nickel wire
    1.6mm 2.0mm 3.2mm High purity Pure Nickel Arc Thermal Spray Wire nickel wire

    1.6mm 3.2mm Monel 400/K500 Thermal Spray Wire Equivalent To Metco Praxair Ernicu-7 Welding Rods/Wire1.6mm 3.2mm Monel 400/K500 Thermal Spray Wire Equivalent To Metco Praxair Ernicu-7 Welding Rods/Wire
