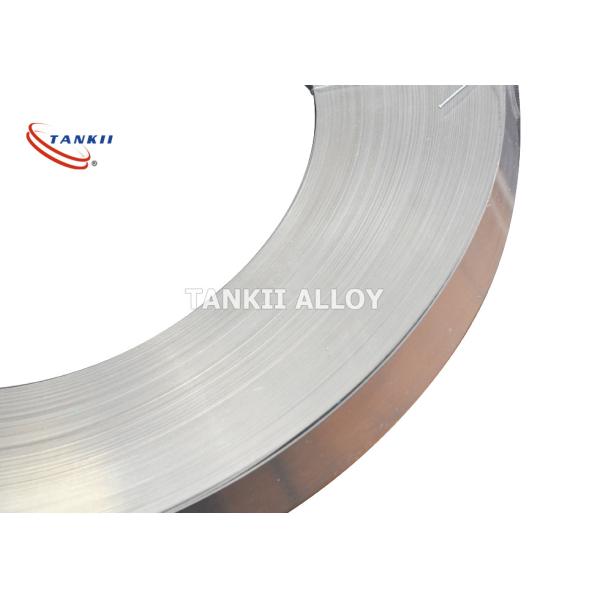

    1.5*75mm Fecral Alloy 0cr21al6 Heating Resistance Strip

    Ask Lasest Price
    Brand Name : Tankii
    Model Number : FeCrAl
    Certification : ISO 9001
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2000kg/month
    Delivery Time : 5-30 days
    • Product Details
    • Company Profile

    1.5*75mm Fecral Alloy 0cr21al6 Heating Resistance Strip

    1.5*75mm Fecral Alloy 0cr21al6 Heating Resistance Strip


    0Cr21Al6


    Chemical Content(%)

    CPSMnSiCrNiAlFeOther
    Max0.06Max 0.025Max 0.025Max0.70Max 1.019.0~22.0Max 0.605.0~7.0Bal.-


    Mechanical Properties

    Max Continuous Service Temp1250ºC
    Resisivity at 20ºC1.42±0.07 ohm mm2/m
    Density7.16 g/cm3
    Thermal Conductivity63.2 KJ/m·h·ºC
    Coefficient of Thermal Expansion14.7×10-6/ºC
    Melting Point1500ºC
    Tensile Strength637~784 Mpa
    ElongationMin 12%
    Section Variation Shrink Rate65~75%
    Repeatedly Bend FrequencyMin 5 times
    Continuous Service Time-
    Hardness200-260HB
    Micrographic StructureFerrite
    Magnetic PropertyMagnetic



    Description: I
    T is made of the surface resistance to high temperature insulation treatment of iron chrome aluminum heating element.

    Feature:
    When used in the 1000 centigrade, there is almost no volatile matter. Being used between 1000 centigrade and 1250 centigrade, the voltatile is less and transparent. It has a long service life used in high temperature. Thermal efficiency increased by more than 20%.

    Usage:
    It is widely used in all kinds of electric heater and heating equipment.
    Especially suitable for making such as high temperature far infrared radiator, electric oven devices such as the heating element.

    The main performance
    1. Can be arbitrary direction installed and used.
    2. There is no need of protective atmosphere or vacuum protection, assembly is convenient, low cost, use security.
    3. Heating up fast, high thermal efficiency, temperature uniformity.
    4. Service life: 10000--500000 hours.


    Grade
    Highest temperature
    Resistivity
    Melting point
    Tensile strength
    Elongation
    0Cr21Al4
    1100ºC
    1.23±0.06μΩ.m
    1500ºC
    750
    ≥12
    0Cr25Al5
    1250ºC
    1.42±0.07μΩ.m
    1500ºC
    750
    ≥12
    0Cr23Al5
    1300ºC
    1.35±0.06μΩ.m
    1500ºC
    750
    ≥12
    0Cr21Al6NbCo
    1350ºC
    1.43±0.07μΩ.m
    1510ºC
    750
    ≥12
    0Cr27Al7Mo2
    1400ºC
    1.53±0.07μΩ.m
    1520ºC
    750
    ≥10

    1.5*75mm Fecral Alloy 0cr21al6 Heating Resistance Strip
